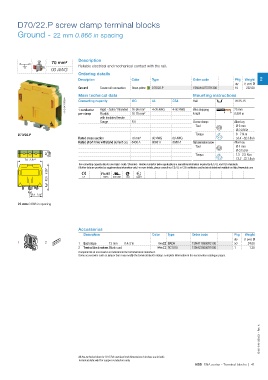

D70/22.P screw clamp terminal blocks
Ground - 22 mm 0.866 in spacing
Description
70 mm²
Reliable electrical and mechanical contact with the rail.
00 AWG
Ordering details
Description Color Type Order code Pkg Weight 2
qty (1 pce) g
Ground Screw rail connection Green-yellow D70/22.P 1SNA400772R1300 10 222.00
Main technical data Mounting instructions
1SNC161070F0014 Connecting capacity IEC UL CSA Rail TH 35-15
Rigid - Solid / Stranded
4-00 AWG
4-00 AWG
16-95 mm²
1 conductor
length
0.984 in
per clamp Flexible 16-70 mm² Wire stripping 25 mm
with insulated ferrule
Gauge B11 Screw clamp Allen key
Tool Ø 6 mm
Ø 0.236 in
D70/22.P Torque 6 - 7 N.m
Rated cross section 70 mm² 00 AWG 00 AWG 53.4 - 62.3 lb.in
Rated short-time withstand current (1s) 8400 A 8088 A 8088 A Rail connection screw Allen key
Tool Ø 4 mm
Ø 0.158 in
Torque 1.5 - 2.5 N.m
13.3 - 22.1 lb.in
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CNR CSA Gost R
22 mm 0.866 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 12 mm 0.472 in Grey BADH 1SNA116900R2700 50 24.00
2 Terminal block markersBlank card White RC1010 1SNA238000R1600 1 1.30
Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161012S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 41
