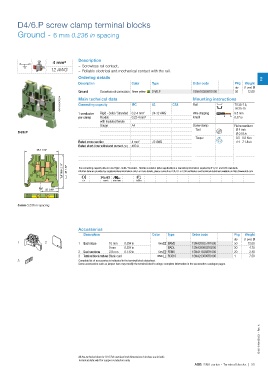

Page 35 - 1SNC160019C0203_SNA series - Terminal blocks
P. 35
D4/6.P screw clamp terminal blocks
Ground - 6 mm 0.236 in spacing
Description
4 mm²
– Screwless rail contact,
12 AWG – Reliable electrical and mechanical contact with the rail.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screwless rail connection Green-yellow D4/6.P 1SNA165809R0100 50 12.00
1SNC161242F0014 Main technical data IEC UL CSA Mounting instructions
Rail
Connecting capacity
TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 24-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
D4/6.P Ø 0.16 in
Torque 0.5 - 0.8 N.m
Rated cross section 4 mm² 12 AWG 4.4 - 7.1 lb.in
Rated short-time withstand current (1s) 480 A
49.7 1.96"
55.5 2.19" 48 1.89" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CNR Gost R
25 0.98"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161051S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 33
Ground - 6 mm 0.236 in spacing
Description
4 mm²
– Screwless rail contact,
12 AWG – Reliable electrical and mechanical contact with the rail.
Ordering details 2
Description Color Type Order code Pkg Weight
qty (1 pce) g
Ground Screwless rail connection Green-yellow D4/6.P 1SNA165809R0100 50 12.00
1SNC161242F0014 Main technical data IEC UL CSA Mounting instructions
Rail
Connecting capacity
TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2-4 mm² 24-12 AWG Wire stripping 9.5 mm
per clamp Flexible 0.22-4 mm² length 0.37 in
with insulated ferrule
Gauge A4 Screw clamp Flat screwdriver
Tool Ø 4 mm
D4/6.P Ø 0.16 in
Torque 0.5 - 0.8 N.m
Rated cross section 4 mm² 12 AWG 4.4 - 7.1 lb.in
Rated short-time withstand current (1s) 480 A
49.7 1.96"
55.5 2.19" 48 1.89" The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards.
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.abb.com
CE RoHS USR CNR Gost R
25 0.98"
6 mm 0.236 in spacing
Accessories
Description Color Type Order code Pkg Weight
qty (1 pce) g
1 2 1 End stops 10 mm 0.394 in Grey BAM2 1SNA206351R1600 50 12.00
9 mm 0.354 in BADL 1SNA399903R0200 50 4.70
2 End sections 2.8 mm 0.110 in Grey FEM6 1SNA118368R1600 20 2.40
3 Terminal block markersBlank card White RC610 1SNA233000R0100 1 7.50
3 Complete list of accessories is indicated in the terminal block datasheet.
Some accessories such as jumper bars may modify the terminal block’s ratings: complete information in the accessories catalogue pages.
1SNC161051S0201 - Rev. A
All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
ABB SNA series - Terminal blocks | 33
