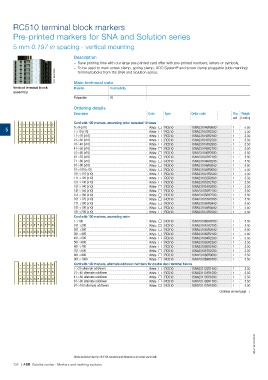

Page 134 - 1SNC160023C0204_Marking_systems_catalog_EN
P. 134
RC510 terminal block markers
Pre-printed markers for SNA and Solution series
5 mm 0.197 in spacing - vertical mounting
1SNC160190F0014 Description
–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– To be used to mark screw clamp, spring clamp, ADO System® and screw clamp pluggable (side marking)
terminal blocks from the SNA and Solution series.
Main technical data
Vertical terminal block Material Flammability
assembly
Polyamide V2
Ordering details
Description Color Type Order code Pkg Weight
card (1 card) g
Card with 100 markers, ascending order repeated 10 times
5 0->9 (x10) White RC510 1SNA231040R0600 1 5.50
1->10 (x10) White RC510 1SNA231041R2300 1 5.50
11->20 (x10) White RC510 1SNA231042R2400 1 5.50
21->30 (x10) White RC510 1SNA231043R2500 1 5.50
31->40 (x10) White RC510 1SNA231044R2600 1 5.50
41->50 (x10) White RC510 1SNA231045R2700 1 5.50
51->60 (x10) White RC510 1SNA231046R2000 1 5.50
61->70 (x10) White RC510 1SNA231047R2100 1 5.50
71->80 (x10) White RC510 1SNA231048R0200 1 5.50
81->90 (x10) White RC510 1SNA231049R0300 1 5.50
91->100 (x10) White RC510 1SNA231050R0000 1 5.50
101->110 (x10) White RC510 1SNA231051R2500 1 5.50
111->120 (x10) White RC510 1SNA231052R2600 1 5.50
121->130 (x10) White RC510 1SNA231053R2700 1 5.50
131->140 (x10) White RC510 1SNA231054R2000 1 5.50
141->150 (x10) White RC510 1SNA231055R2100 1 5.50
151->160 (x10) White RC510 1SNA231056R2200 1 5.50
161->170 (x10) White RC510 1SNA231057R2300 1 5.50
171->180 (x10) White RC510 1SNA231058R0400 1 5.50
181->190 (x10) White RC510 1SNA231059R0500 1 5.50
191->200 (x10) White RC510 1SNA231072R2200 1 5.50
Card with 100 markers, ascending order
1->100 White RC510 1SNA231060R0200 1 5.50
101->200 White RC510 1SNA231061R2700 1 5.50
201->300 White RC510 1SNA231062R2000 1 5.50
301->400 White RC510 1SNA231063R2100 1 5.50
401->500 White RC510 1SNA231064R2200 1 5.50
501->600 White RC510 1SNA231065R2300 1 5.50
601->700 White RC510 1SNA231066R2400 1 5.50
701->800 White RC510 1SNA231067R2500 1 5.50
801->900 White RC510 1SNA231068R0600 1 5.50
901->1000 White RC510 1SNA231069R0700 1 5.50
Card with 100 markers, alternate odd/even numbers for double deck terminal blocks
1->20 alternate odd/even White RC510 1SNA231133R1400 1 5.50
1 5.50
21->40 alternate odd/even White RC510 1SNA231134R1500 1 5.50
1 5.50
41->60 alternate odd/even White RC510 1SNA231135R1600 1 5.50
61->80 alternate odd/even White RC510 1SNA231136R1700
81->100 alternate odd/even White RC510 1SNA231137R1000
Continue on next page →
1SNC160141S0201
All the technical data for UL/CSA standard and dimensions in inches are in italic.
132 | ABB Solution series - Markers and marking systems
