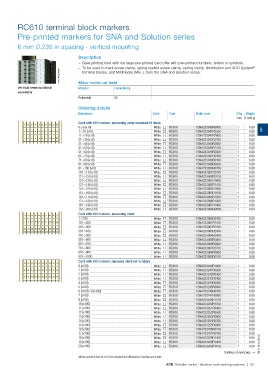

Page 139 - 1SNC160023C0204_Marking_systems_catalog_EN

RC610 terminal block markers
Pre-printed markers for SNA and Solution series

6 mm 0.236 in spacing - vertical mounting

1SNC160190F0014 Description

–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– To be used to mark screw clamp, spring loaded screw clamp, spring clamp, distribution and ADO System®

terminal blocks, and Miniblocks (MS..), from the SNA and Solution series.

Main technical data

Vertical terminal block Material Flammability
assembly

Polyamide V2

Ordering details Color Type Order code Pkg Weight
card (1 card) g
Description RC610
RC610
Card with 100 markers, ascending order repeated 10 times RC610
RC610
0->9 (x10) White RC610 1SNA233040R0000 51 6.80
1->10 (x10) White RC610 1SNA233041R2500
11->20 (x10) White RC610 1SNA233042R2600 1 6.80
21->30 (x10) White RC610 1SNA233043R2700 1 6.80
31->40 (x10) White RC610 1SNA233044R2000 1 6.80
41->50 (x10) White RC610 1SNA233045R2100 1 6.80
51->60 (x10) White RC610 1SNA233046R2200 1 6.80
61->70 (x10) White RC610 1SNA233047R2300 1 6.80
71->80 (x10) White RC610 1SNA233048R0400 1 6.80
81->90 (x10) White RC610 1SNA233049R0500 1 6.80
91->100 (x10) White RC610 1SNA233050R0200 1 6.80
101->110 (x10) White RC610 1SNA233051R2700 1 6.80
111->120 (x10) White RC610 1SNA233080R2100 1 6.80
121->130 (x10) White RC610 1SNA233081R1600 1 6.80
131->140 (x10) White RC610 1SNA233082R1700 1 6.80
141->150 (x10) White RC610 1SNA233083R1000 1 6.80
151->160 (x10) White RC610 1SNA233084R1100 1 6.80
161->170 (x10) White 1SNA233085R1200 1 6.80
171->180 (x10) White RC610 1SNA233086R1300 1 6.80
181->190 (x10) White RC610 1SNA233087R1400 1 6.80
191->200 (x10) White RC610 1SNA233088R2500 1 6.80
RC610 1 6.80
RC610
Card with 100 markers, ascending order RC610
RC610
1->100 White RC610 1SNA233060R0400 1 6.80
101->200 White RC610 1SNA233061R2100 1 6.80
201->300 White RC610 1SNA233062R2200 1 6.80
301->400 White 1SNA233063R2300 1 6.80
401->500 White RC610 1SNA233064R2400 1 6.80
501->600 White RC610 1SNA233065R2500 1 6.80
601->700 White RC610 1SNA233066R2600 1 6.80
701->800 White RC610 1SNA233067R2700 1 6.80
801->900 White RC610 1SNA233068R0000 1 6.80
901->1000 White RC610 1SNA233069R0100 1 6.80
RC610
Card with 100 markers, repeated identical numbers RC610
RC610
0 (x100) White RC610 1SNA233240R1500 1 6.80 1SNC160143S0201
1 (x100) White RC610 1SNA233241R0200 1 6.80
2 (x100) White RC610 1SNA233242R0300 1 6.80
3 (x100) White RC610 1SNA233243R0400 1 6.80
4 (x100) White RC610 1SNA233244R0500 1 6.80
5 (x100) White RC610 1SNA233245R0600 1 6.80
6 (x100) / 9 (x100) White RC610 1SNA233246R0700 1 6.80
7 (x100) White RC610 1SNA233247R0000 1 6.80
8 (x100) White RC610 1SNA233248R1100 1 6.80
10 (x100) White RC610 1SNA233250R1700 1 6.80
11 (x100) White RC610 1SNA233251R0400 1 6.80
12 (x100) White 1SNA233252R0500 1 6.80
13 (x100) White 1SNA233253R0600 1 6.80
14 (x100) White 1SNA233254R0700 1 6.80
15 (x100) White 1SNA233255R0000 1 6.80
16 (x100) White 1SNA233256R0100 1 6.80
17 (x100) White 1SNA233257R0200 1 6.80
18 (x100) White 1SNA233258R1300 1 6.80
19 (x100) White 1SNA233259R1400 1 6.80
20 (x100) White 1SNA233260R1100 1 6.80

Continue on next page →

All the technical data for UL/CSA standard and dimensions in inches are in italic.

ABB Solution series - Markers and marking systems | 137
