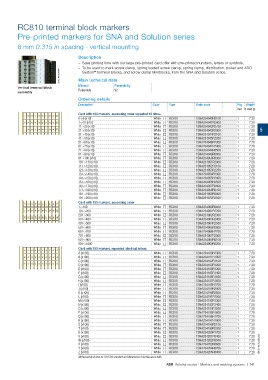

Page 143 - 1SNC160023C0204_Marking_systems_catalog_EN
P. 143
RC810 terminal block markers
Pre-printed markers for SNA and Solution series
8 mm 0.315 in spacing - vertical mounting
1SNC160190F0014 Description
–– Save printing time with our large pre-printed card offer with pre-printed numbers, letters or symbols,
–– To be used to mark screw clamp, spring loaded screw clamp, spring clamp, distribution, power and ADO
System® terminal blocks, and screw clamp Miniblocks, from the SNA and Solution series.
Main technical data
Vertical terminal block Material Flammability
assembly Polyamide V2
Ordering details Color Type Order code Pkg Weight
card (1 card) g
Description RC810 1SNA234040R0100
RC810 1SNA234041R2600 1 7.20
Card with 100 markers, ascending order repeated 10 times RC810 1SNA234042R2700 1 7.20
RC810 1SNA234043R2000
0->9 (x10) White RC810 1SNA234044R2100 51 7.20
1->10 (x10) White RC810 1SNA234045R2200
11->20 (x10) White RC810 1SNA234046R2300 1 7.20
21->30 (x10) White RC810 1SNA234047R2400 1 7.20
31->40 (x10) White RC810 1SNA234048R0500 1 7.20
41->50 (x10) White RC810 1SNA234049R0600 1 7.20
51->60 (x10) White RC810 1SNA234050R0300 1 7.20
61->70 (x10) White RC810 1SNA234051R2000 1 7.20
71->80 (x10) White RC810 1SNA234052R2100 1 7.20
81->90 (x10) White RC810 1SNA234053R2200 1 7.20
91->100 (x10) White RC810 1SNA234054R2300 1 7.20
101->110 (x10) White RC810 1SNA234055R2400 1 7.20
111->120 (x10) White RC810 1SNA234056R2500 1 7.20
121->130 (x10) White RC810 1SNA234057R2600 1 7.20
131->140 (x10) White RC810 1SNA234058R0700 1 7.20
141->150 (x10) White RC810 1SNA234059R0000 1 7.20
151->160 (x10) White RC810 1SNA234072R2500 1 7.20
161->170 (x10) White 1 7.20
171->180 (x10) White RC810 1SNA234060R0500 1 7.20
181->190 (x10) White RC810 1SNA234061R2200 1 7.20
191->200 (x10) White RC810 1SNA234062R2300
RC810 1SNA234063R2400 1 7.20
Card with 100 markers, ascending order RC810 1SNA234064R2500 1 7.20
RC810 1SNA234065R2600 1 7.20
1->100 White RC810 1SNA234066R2700 1 7.20
RC810 1SNA234067R2000 1 7.20
101->200 White RC810 1SNA234068R0100 1 7.20
RC810 1SNA234069R0200 1 7.20
201->300 White 1 7.20
RC810 1SNA234180R2300 1 7.20
301->400 White RC810 1SNA234181R1000 1 7.20
RC810 1SNA234182R1100
401->500 White RC810 1SNA234183R1200 1 7.20
RC810 1SNA234184R1300 1 7.20
501->600 White RC810 1SNA234185R1400 1 7.20
RC810 1SNA234186R1500 1 7.20
601->700 White RC810 1SNA234187R1600 1 7.20
RC810 1SNA234188R2700 1 7.20
701->800 White RC810 1SNA234189R2000 1 7.20
RC810 1SNA234190R2500 1 7.20
801->900 White RC810 1SNA234191R1200 1 7.20
RC810 1SNA234192R1300 1 7.20
901->1000 White RC810 1SNA234193R1400 1 7.20
RC810 1SNA234194R1500 1 7.20
Card with 100 markers, repeated identical letters White RC810 1SNA234195R1600 1 7.20 1SNC160145S0201
A (x100) White RC810 1SNA234196R1700 1 7.20
B (x100) White RC810 1SNA234197R1000 1 7.20
C (x100) White RC810 1SNA234198R2100 1 7.20
D (x100) White RC810 1SNA234199R2200 1 7.20
E (x100) White RC810 1SNA234200R1700 1 7.20
F (x100) White RC810 1SNA234201R0400 1 7.20
G (x100) White RC810 1SNA234202R0500 1 7.20
H (x100) White RC810 1SNA234203R0600 1 7.20
I (x100) White RC810 1SNA234204R0700 1 7.20
J (x100) White RC810 1SNA234205R0000 1 7.20
K (x100) White 1 7.20
L (x100) White 1 7.20
M (x100) White 1 7.20
N (x100) White
O (x100) White
P (x100) White
Q (x100) White
R (x100) White
S (x100) White
T (x100) White
U (x100) White
V (x100) White
W (x100) White
X (x100) White
Y (x100) White
Z (x100)
All the technical data for UL/CSA standard and dimensions in inches are in italic.
