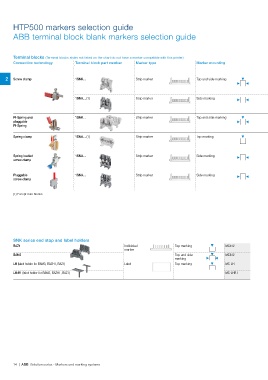

HTP500 markers selection guide
ABB terminal block blank markers selection guide
Terminal blocks (Terminal blocks styles not listed on the chart do not have a marker compatible with this printer)
Connection technology Terminal block part number Marker type Marker mounting
Top and side marking
2 Screw clamp 1SNK... Strip marker
1SNA... (1) Strip marker Side marking
PI-Spring and 1SNK... Strip marker Top and side marking
pluggable 1SNA... (1) Strip marker Top marking
PI‑Spring
Spring clamp
Spring loaded 1SNA... Strip marker Side marking
screw clamp 1SNA... Strip marker Side marking
Pluggable
screw clamp
(1) Except mini-blocks.
SNK series end stop and label holders Individual Top marking MC512
marker MC812
BAZ1 Label Top and side MC-LH
marking MC-LHR1
BAM3 Top marking
LH (label holder for BAM3, BAZH1, BAZ1)
LH-R1 (label holder for BAM3, BAZH1, BAZ1)
