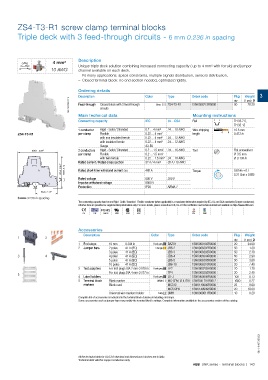

Page 147 - 1SNK160027C0207_SNK Series Terminal Blocks

ZS4-T3-R1 screw clamp terminal blocks

Triple deck with 3 feed-through circuits - 6 mm 0.236 in spacing

4 mm² Description
Unique triple deck solution combining increased connecting capacity ( up to 4 mm² with ferrule) and jumper
10 AWG channel available on each deck,
– Fit many applications: space constraints, multiple signals distribution, sensors distribution,
– Closed terminal block: no end section needed, optimized rigidity.
Ordering details
Weight 3
Description Color Type Order code Pkg (1 pce) g
1SNK161088V0014 Feed-through Closed block with 3 feed-through Grey ZS4-T3-R1 1SNK506213R0000 50 28.30
qty
circuits
Main technical data Mounting instructions
Connecting capacity IEC UL - CSA Rail TH 35-7.5,
TH 35-15
1 conductor Rigid - Solid / Stranded 0.2 ... 4 mm² 24 ... 10 AWG Wire stripping 10.5 mm
ZS4-T3-R1 per clamp Flexible 0.22 ... 4 mm² length 0.413 in
with non insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
with insulated ferrule 0.22 ... 4 mm² 24 ... 12 AWG
Gauge A3-B3
100.1 3.94" 2 conductors Rigid - Solid / Stranded 0.2 ... 1.5 mm² 24 ... 16 AWG Tool Flat screwdriver
per clamp Flexible 0.2 ... 1.5 mm² Ø 3.5 mm
with twin ferrule 0.22 ... 1.5 mm² 24 ... 16 AWG Ø 0.138 in
Rated current / Rated cross section 32 A / 4 mm² 30 A / 10 AWG
87.4 3.44" 79.9 3.14" Rated short-time withstand current (1s) 480 A Torque 0.6 Nm ± 0.1

Rated voltage 800 V 300 V 5.31 lb.in ± 0.885
Impulse withstand voltage 8000 V
Protection IP20 NEMA 1
55.3 2.17"
6 mm 0.236 in spacing
The connecting capacity data for one Rigid - Solid / Stranded - Flexible conductor (when applicable) is a mandatory information required by IEC, UL and CSA standards (Copper conductors).
All other data are provided as supplementary information only. For more details, please consult our CB, UL or CSA certificates and technical datasheet available on http://www.ABB.com

CE CB RoHS USR CSA EAC BV DNV

Accessories
Description Color Type Order code Pkg Weight
1 2
qty (1 pce) g
1 End stops 10 mm 0.394 in Dark grey BAZH1 1SNK900102R0000 20 24.00
2 Jumper bars 2 poles 41 A (IEC) Orange JB6-2 1SNK906302R0000 50 1.30
3 poles 41 A (IEC) JB6-3 1SNK906303R0000 50 2.10
3 4 4 poles 41 A (IEC) JB6-4 1SNK906304R0000 50 2.90
5 poles 41 A (IEC) JB6-5 1SNK906305R0000 50 3.60
10 poles 41 A (IEC) JB6-10 1SNK906310R0000 20 7.40
3 Test adapters For test plugs DIA 2 mm 0.079 in Dark grey TP2 1SNK900203R0000 20 1.70
For test plugs DIA 4 mm 0.157 in TP4 1SNK900205R0000 20 2.40
5
4 Label holders Dark grey LH-J 1SNK900606R0000 100 0.73
5 Terminal block Blank marker White MG-CPM 13 41791 1SNB041791R0612 1680 0.27
markers Blank card MC512 1SNK140000R0000 22 9.00
MC512PA 1SNK149999R0000 20 10.00
Universal wire markers holder Grey UMH 1SNK900611R0000 10 0.20
Complete list of accessories is indicated in the terminal block datasheet including end stops.
Some accessories such as jumper bars may modify the terminal block's ratings: Complete information available in the accessories section of the catalog.

1SNK161073S0201

All the technical data for UL/CSA standard and dimensions in inches are in italic.
Technical data valid for copper conductors only.
