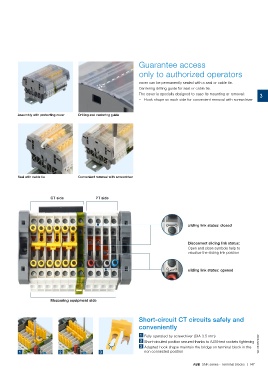

Page 151 - 1SNK160027C0207_SNK Series Terminal Blocks

Guarantee access

only to authorized operators

cover can be permanently sealed with a seal or cable tie.
Centering drilling guide for seal or cable tie.
The cover is specially designed to ease its mounting or removal: 3
– Hook shape on each side for convenient removal with screwdriver

Assembly with protecting cover Drilling and centering guide

Seal with cable tie Convenient removal with screwdriver

CT side PT side

sliding link status: closed

Disconnect sliding link status:
Open and close symbols help to
visualize the sliding link position

sliding link status: opened

Measuring equipment side

Short-circuit CT circuits safely and
conveniently
1 Fully operated by screwdriver (DIA 3.5 mm)
2 Short-circuited position secured thanks to AJS9 test sockets tightening
3 Adapted hook shape maintain the bridge on terminal block in the 1SNK160057S0201
1 2 3 non connected position

ABB SNK series - Terminal blocks | 147
