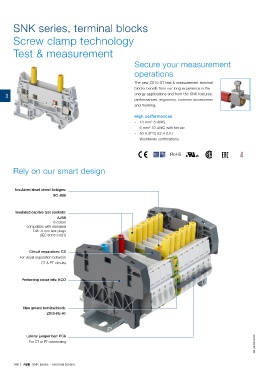

Page 150 - 1SNK160027C0207_SNK Series Terminal Blocks

SNK series, terminal blocks

Screw clamp technology

Test & measurement

Secure your measurement

operations

The new ZS10-ST test & measurement terminal
blocks benefit from our long experience in the
3 energy applications and from the SNK features:
performances, ergonomy, common accessories
and marking.

High performances
– 10 mm² 6 AWG
– 6 mm² 10 AWG with ferrule
– 50 A (IEC) 53 A (UL)
– Worldwide certifications

RoHS
BV
EAC
Rely on our smart design

Insulated short circuit bridges:
SC-JB8

Insulated captive test sockets:
AJS9
6 colors
compatible with standard
DIA. 4 mm test plugs
(IEC 60010-031)

Circuit separators: CS
For visual separation between
CT & PT circuits

Protecting cover kits: KCO

New ground terminal block:
ZS10-PE-R1

1SNK160057S0201
Lateral jumper bar: PC8
For CT or PT commoning

146 | ABB SNK series - Terminal blocks
