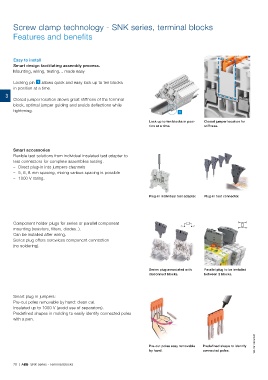

Page 74 - 1SNK160027C0207_SNK Series Terminal Blocks

Screw clamp technology - SNK series, terminal blocks

Features and benefits

Easy to install
Smart design facilitating assembly process.
Mounting, wiring, testing… made easy

Locking pin 1 allows quick and easy lock up to ten blocks
in position at a time.
3
Closed jumper location allows great stiffness of the terminal
block, optimal jumper guiding and avoids deflections while
tightening. 1

Lock up to ten blocks in posi- Closed jumper location for
tion at a time. stiffness.

Smart accessories
Flexible test solutions from individual insulated test adapter to
test connectors for complete assemblies testing.
– Direct plug-in into jumpers channels
– 5, 6, 8 mm spacing, mixing various spacing is possible
– 1000 V rating.

Plug-in individual test adapter. Plug-in test connector.

Component holder plugs for series or parallel component
mounting (resistors, filters, diodes..).
Can be installed after wiring.
Series plug offers screwless component connection
(no soldering).

Series plug associated with Parallel plug to be installed
disconnect blocks. between 2 blocks.

Smart plug-in jumpers:
Pre-cut poles removable by hand: clean cut.
Insulated up to 1000 V (avoid use of separators).
Predefined shapes in molding to easily identify connected poles
with a pen.

1SNK161092S0201

Pre-cut poles easy removable Predefined shape to identify
by hand. connected poles.

70 | ABB SNK series - Terminal blocks
