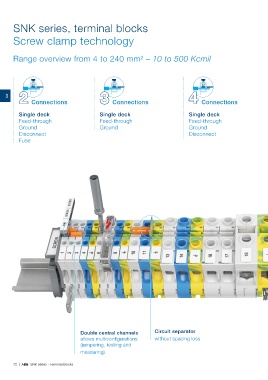

SNK series, terminal blocks

Screw clamp technology

Range overview from 4 to 240 mm² – 10 to 500 Kcmil

3 2 Connections 3 Connections 4 Connections

Single deck Single deck Single deck
Feed-through Feed-through Feed-through
Ground Ground Ground
Disconnect Disconnect
Fuse

Double central channels Circuit separator
allows multiconfigurations without spacing loss
(jumpering, testing and
measuring)

72 | ABB SNK series - Terminal blocks
