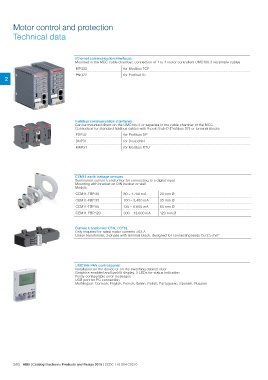

Motor control and protection
Technical data
Ethernet communication interfaces
Mounted in the MCC cable chamber; connection of 1 to 4 motor controllers UMC100.3 via simple cables
MTQ22 for Modbus TCP
PNQ22 for Profinet IO
2
Fieldbus communication interfaces
Can be mounted direct on the UMC100.3 or separate in the cable chamber of the MCC.
Connection for standard fieldbus cables with 9-pole Sub-D (Profibus DP) or terminal blocks
PDP32 for Profibus DP
DNP31 for DeviceNet
MRP31 for Modbus RTU
CEM11 earth leakage sensors
Summation current transformer for connecting to a digital input
Mounting with bracket on DIN busbar or wall
Models
CEM11-FBP.20 80 – 1.700 mA 20 mm Ø
CEM11-FBP.35 100 – 3.400 mA 35 mm Ø
CEM11-FBP.60 120 – 6.800 mA 60 mm Ø
CEM11-FBP.120 300 – 13.600 mA 120 mm Ø
Current transformer CT4L / CT5L
Only required for rated motor currents >63 A
Linear transformer, 3-phase with terminal block, designed for connecting leads Cu 2.5 mm2
UMC100-PAN control panel
Installation on the device or on the switching cabinet door
Graphics-enabled and backlit display, 3 LEDs for status indication
Freely configurable error messages
USB port for PC connection
Multilingual: German, English, French, Italian, Polish, Portuguese, Spanish, Russian
2/83 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
