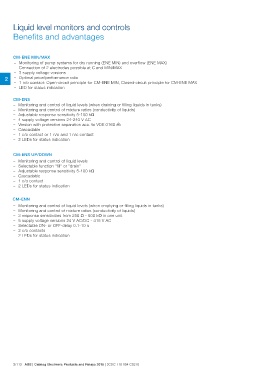

Liquid level monitors and controls
Benefits and advantages

CM-ENE MIN/MAX
– Monitoring of pump systems for dry running (ENE MIN) and overflow (ENE MAX)
– Connection of 2 electrodes possible at C and MIN/MAX
– 3 supply voltage versions

2 – Optimal price/performance ratio

– 1 n/o contact: Open-circuit principle for CM-ENE MIN, Closed-circuit principle for CM-ENE MAX
– LED for status indication

CM-ENS
– Monitoring and control of liquid levels (when draining or filling liquids in tanks)
– Monitoring and control of mixture ratios (conductivity of liquids)
– Adjustable response sensitivity 5-100 k⏲
– 4 supply voltage versions 24-240 V AC
– Version with protective separation acc. to VDE 0160 J
– Cascadable
– 1 c/o contact or 1 n/o and 1 n/c contact
– 2 LEDs for status indication

CM-ENS UP/DOWN
– Monitoring and control of liquid levels
– Selectable function "fill" or "drain"
– Adjustable response sensitivity 5-100 k⏲
– Cascadable
– 1 c/o contact
– 2 LEDs for status indication

CM-ENN
– Monitoring and control of liquid levels (when emptying or filling liquids in tanks)
– Monitoring and control of mixture ratios (conductivity of liquids)
– 3 response sensitivities from 250 ⏲ - 500 k⏲ in one unit
– 5 supply voltage versions 24 V AC/DC - 415 V AC
– Selectable ON- or OFF-delay 0.1-10 s
– 2 c/o contacts
– 2 LEDs for status indication

2/113 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
