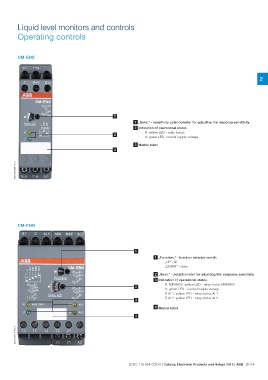

Liquid level monitors and controls
                    Operating controls

                    CM-ENS

                                                                                                                                      2

                            1

                                                        1 „Sens.“ - sensitivity potentiometer for adjusting the response sensitivity

                                                        2 Indication of operational states

                            2                           R: yellow LED - relay status
                                                        U: green LED -control supply voltage

                                              3 Marker label
                            3

2CDC 253 026 F0013

                    CM-ENN

2CDC 253 012 F0013                 1

                                                      1 „Function.“ - function selector switch:
                                                                 „UP“- fill
                                                                 „DOWN“ - drain

                                                      2 „Sens.“ - potentiometer for adjusting the response sensitivity
                                                      3 Indication of operational states

                                                                 R: MIN/MAX: yellow LED - relay status MIN/MAX
                                    2 U: green LED - control supply voltage

                                                                 R AL1: yellow LED - relay status AL1
                                    3 R AL2: yellow LED - relay status AL2

                                                      4 Marker label
                                    4

                               2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 2/114
