Liquid level monitors and controls

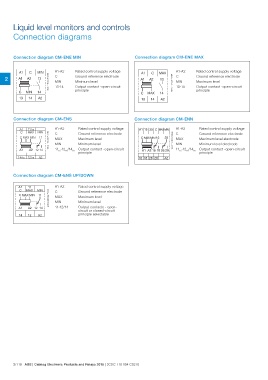

Connection diagrams

Connection diagram CM-ENE MIN Connection diagram CM-ENE MAX

1SVC 110 000 F 0153 A1-A2 Rated control supply voltage A1-A2 Rated control supply voltage
C
2 C Ground reference electrode 1SVC 110 000 F 0154 MIN Ground reference electrode
MIN Minimum level 13-14
Maximum level
13-14 Output contact -open-circuit
principle Output contact -open-circuit
principle

Connection diagram CM-ENS Connection diagram CM-ENN

1SVC 110 000 F 0158 A1-A2 Rated control supply voltage 1SVC 110 000 F 0169 A1-A2 Rated control supply voltage
C Ground reference electrode C Ground reference electrode
MAX Maximum level MAX Maximum level electrode
MIN Minimum level MIN Minimum level electrode
1115-1216/1418 Output contact -open-circuit 1115-1216/1418 Output contact -open-circuit
principle principle

Connection diagram CM-ENS UP/DOWN

A1 11 2CDC 252 042 F0003 A1-A2 Rated control supply voltage
C MAX MIN C
C MAX MIN 11 MAX Ground reference electrode
MIN
A1 A2 12 14 11-12/14 Maximum level
14 12 A2
Minimum level

Output contacts - open-
circuit or closed-circuit
principle selectable
