P. 195

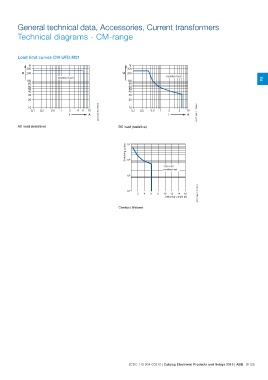

General technical data, Accessories, Current transformers
Technical diagrams - CM-range
Load limit curves CM-UFD.M21
V resistive load V resistive load 2
300 300
U 200 U 200
100 100
80 80
60 60
50 50
40 40
30 30
20 20
10 0.5 1 2 4 6 10 2CDC 252 010 F0212 10 0.5 1 2 5 10 2CDC 252 011 F0212
0.1 0.2 IA 0.1 0.2 I A
Switching cycles
AC load (resistive) DC load (resistive)
107 2CDC 252 012 F0212
106
250 V AC
resistive load
105
104
2 4 6 8 10 12 14 16
Switching current [A]
Contact lifetime
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 2/128
