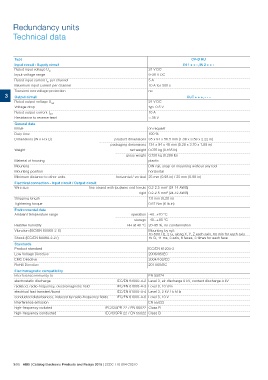

Page 254 - EPR Catalog 2015

Redundancy units
Technical data

Type 24 V DC CP-D RU
9-35 V DC IN 1 + + -, IN 2 + + -
Input circuit - Supply circuit 5A
Rated input voltage Uin 10 A for 300 s OUT + + +, - - -
Input voltage range no

Rated input current Iin per channel 24 V DC
Maximum input current per channel typ. 0.5 V
10 A
Transient overvoltage protection < 35 V

3 Output circuit

Rated output voltage Uout
Voltage drop

Rated output current Iout
Resistance to reverse feed

General data on request
MTBF 100 %
Duty time product dimensions 35 x 91 x 56.5 mm (1.38 x 3.58 x 2.22 in)
Dimensions (W x H x D) packaging dimensions 134 x 94 x 48 mm (5.28 x 3.70 x 1.89 in)
net weight 0.075 kg (0.165 lb)
Weight gross weight 0.130 kg (0.286 lb)
plastic
Material of housing DIN rail, snap-on mounting without any tool
Mounting horizontal
Mounting position horizontal / vertical 25 mm (0.98 in) / 25 mm (0.98 in)
Minimum distance to other units

Electrical connection - Input circuit / Output circuit

Wire size fine-strand with (out)wire end ferrule 0.2-2.5 mm2 (24-14 AWG)

rigid 0.2-2.5 mm2 (24-12 AWG)

Stripping length 7.0 mm (0.28 in)

Tightening torque 0.67 Nm (6 Ib.in)

Environmental data operation -40...+70 °C
Ambient temperature range
storage -40...+85 °C
Relative humidity
Vibration (IEC/EN 60068-2-6) RH at 40 °C 20-95 %, no condensation
Shock (IEC/EN 60068-2-27)
Mounting by rail:
10-500 Hz, 2 G, along X, Y, Z each axis, 60 min for each axis
15 G, 11 ms, 3 axis, 6 faces, 3 times for each face

Standards IEC/EN 61204-3
Product standard 2006/95/EC
Low Voltage Directive 2004/108/EC
EMC Directive 2011/65/EC
RoHS Directive

Electromagnetic compatibility EN 55024
Interference immunity to

electrostatic discharge IEC/EN 61000-4-2 Level 3, air discharge 8 kV, contact discharge 4 kV

radiated, radio-frequency, electromagnetic field IEC/EN 61000-4-3 Level 3, 10 V/m

electrical fast transient/burst IEC/EN 61000-4-4 Level 3, 2 kV / 5 kHz

conducted disturbances, induced by radio-frequency fields IEC/EN 61000-4-6 Level 3, 10 V

Interference emission EN 55022

high-frequency radiated IEC/CISPR 22 / EN 55022 Class B

high-frequency conducted IEC/CISPR 22 / EN 55022 Class B

3/55 ABB | Catalog Electronic Products and Relays 2015 | 2CDC 110 004 C0210
