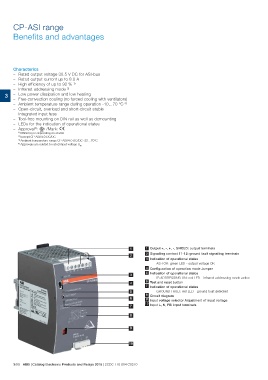

CP-ASI range
Benefits and advantages

Characterics
– Rated output voltage 30.5 V DC for ASI-bus
– Rated output current up to 8.0 A
– High efficiency of up to 92 % 1)
– Infrared addressing mode 2)

3 – Low power dissipation and low heating

– Free convection cooling (no forced cooling with ventilators)
– Ambient temperature range during operation -10…70 °C 3)
– Open-circuit, overload and short-circuit stable
– Integrated input fuse
– Tool-free mounting on DIN rail as well as demounting
– LEDs for the indication of operational states
– Approval4): A /Mark: a

1) Efficiency is depending on device
2) Except CP-ASI/4.0 DC/DC
3) Ambient temperature range CP-ASI/4.0 DC/DC -25…70°C
4) Approvals are related to rated input voltage Uin

1 1 Output +, -, +, -, SHIELD: output terminals

2 2 Signalling contact 11-12: ground fault signalling terminals
3 Indication of operational states
AS-I OK: green LED - output voltage OK
4 Configuration of operation mode Jumper

3 5 Indication of operational states
IR ADDRESSING ON: red LED - infrared addressing mode active

4 6 Test and reset button
7 Indication of operational states

5 GROUND FAULT: red LED - ground fault detected
8 Circuit diagram

6 9 Input voltage selector Adjustment of input voltage
7 10 Input L, N, PE: input terminals
8

9

10
