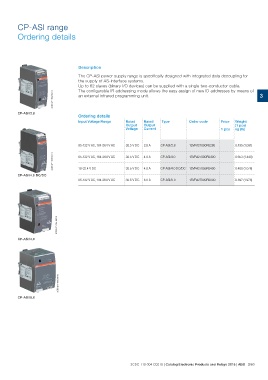

Page 259 - EPR Catalog 2015

CP-ASI range
Ordering details

Description

2CDC 271 002 S0012 The CP-ASI power supply range is specifically designed with integrated data decoupling for 3
the supply of AS-Interface systems.
Up to 62 slaves (binary I/O devices) can be supplied with a single two-conductor cable.
The configurable IR addressing mode allows the easy assign of new ID addresses by means of
an external infrared programming unit.

CP-ASI/2.8 Ordering details Rated Rated Type Order code Price Weight
CP-ASI/4.0 DC/DC Output Output 1 pce (1 pce)
Input Voltage Range Voltage Current kg (lb)

85-132 V AC, 184-264 V AC 30.5 V DC 2.8 A CP-ASI/2.8 1SVR427090R0280 0.495 (1.091)
85-132 V AC, 184-264 V AC 30.5 V DC 4.0 A 0.653 (1.440)
2CDC 271 003 S0012 18-32.4 V DC 30.5 V DC 4.0 A CP-ASI/4.0 1SVR427090R0400 0.488 (1.076)
85-132 V AC, 184-264 V AC 30.5 V DC 8.0 A 0.897 (1.978)
CP-ASI/4.0 DC/DC 1SVR427095R0400

CP-ASI/8.0 1SVR427090R0800

2CDC 271 004 S0012

CP-ASI/4.0

2CDC 271 005 S0012

CP-ASI/8.0

2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 3/60
