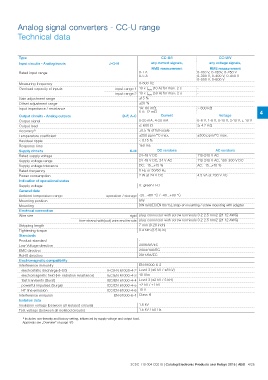

Analog signal converters - CC-U range
Technical data

Type CC-U/I CC-U/V

Input circuits - Analog inputs J-G-H any current signals, any voltage signals,

Rated input range RMS measurement RMS measurement
0-1 A 0-100 V, 0-150V, 0-250 V
Measuring frequency 0-5 A 0-300 V, 0-400 V, 0-450 V
Overload capacity of inputs 0-550 V, 0-600 V
0-600 Hz
Gain adjustment range -
Offset adjustment range input range 1 10 x INom (10 A) for max. 2 s -
Input impedance / resistance input range 2 10 x INom (50 A) for max. 2 s
> 800 k⏲
Output circuits - Analog outputs ±15 % Voltage
Output signal
Output load ±20 % 0-5 V, 1-5 V, 0-10 V, 2-10 V, ± 10 V
Accuracy1) ͧ 4.7 K⏲
Temperature coefficient 1A: 60 m⏲, 4
Residual ripple 5 A: 12 m⏲ ±300 ppm/°C max.

D-F, A-C Current

0-20 mA, 4-20 mA

ͨ 600 ⏲

±0.5 % of full-scale

±250 ppm/°C max.

< 0.15 %

Response time 150 ms AC versions
Supply circuits K-M DC versions 110-240 V AC
Rated supply voltage 110-240 V AC, 100-300 V DC
Supply voltage range 24-48 V DC AC: -15...+10 %
Supply voltage tolerance 24-48 V DC, 24 V AC
Rated frequency DC: -15...+15 % 4.5 VA at 230 V AC
Power consumption 0 Hz or 50/60 Hz
2 W at 24 V DC

Indication of operational states U: green LED
Supply voltage

General data operation / storage -20...+60 °C / -40...+80 °C
Ambient temperature range any
Mounting position
Mounting DIN rail (IEC/EN 60715), snap-on mounting / screw mounting with adapter

Electrical connection rigid plug-connector with screw terminals 0.2-2.5 mm2 (24-12 AWG)
Wire size fine-strand with(out) wire end ferrule plug-connector with screw terminals 0.2-2.5 mm2 (24-12 AWG)

Stripping length 7 mm (0.28 inch)
Tightening torque
0.4 Nm (3.5 lb.in)

Standards -
Product standard 2006/95/EC
Low Voltage directive 2004/108/EC
EMC directive 2011/65/EC
RoHS directive

Electromagnetic compatibility EN 61000-6-2
Interference immunity
IEC/EN 61000-4-2 Level 3 (±6 kV / ±8 kV)
electrostatic discharge (ESD) IEC/EN 61000-4-3 10 V/m
electromagnetic field (HF radiation resistance) IEC/EN 61000-4-4 Level 3 (±2 kV / 5 kH)
fast transients (Burst) IEC/EN 61000-4-5 ±2 kV / ±1 kV
powerful impulses (Surge) IEC/EN 61000-4-6 10 V
HF line emission
Interference emission EN 61000-6-4 Class B

Isolation data 1.5 kV
Insulation voltage (between all isolated circuits) 1.5 kV / 50 Hz
Test voltage (between all isolated circuits)

1) Includes non-linearity and factory setting, influenced by supply voltage and output load.
Approvals see „Overview“ on page 4/3
