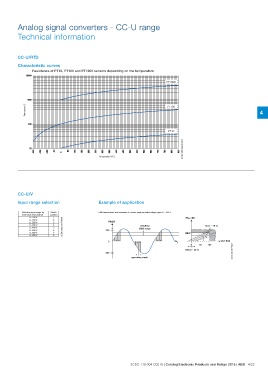

P. 301
Analog signal converters - CC-U range
Technical information
CC-U/RTD
Characteristic curves
Resistance of PT10, PT100 and PT1000 sensors depending on the temperature
PT1000
Resistance [⏲] PT100
4
PT10
Temperature [°C] 2CDC 282 022 F0203
CC-U/V Example of application
Input range selection
Selecting input range by Switch RMS measurement and conversion of a phase-angle controlled voltage signal L1 = 230 V
front-face rotary switch position
2CDC 282 012 F0204 INUeff [V]
0...100 V 1
0...150 V 2 U(t) [V] resulting Gain Ȁ15 %
0...250 V 3 300 RMS value
0...300 V 4
0...400 V 5
0...450 V 6
0...550 V 7
0...600 V 8
0 OUT [%]
0 50 100 2CDC 282 030 F0203
Offset Ȁ20 %
-300
operating angle
2CDC 110 004 C0210 | Catalog Electronic Products and Relays 2015 | ABB 4/22
