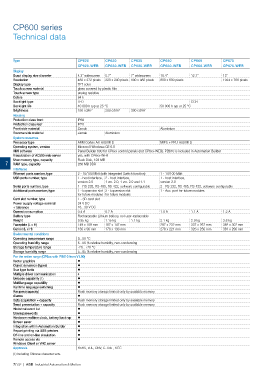

CP600 series

Technical data

Type CP620 CP630 CP635 CP650 CP660 CP675
CP620-WEB CP630-WEB CP635-WEB CP650-WEB CP660-WEB CP675-WEB
Display
Exact display size diameter 4.3" widescreen 5.7" 7" widescreen 10.4" 12.1" 15"
Resolution 480 x 272 pixels 320 x 240 pixels 800 x 480 pixels 800 x 600 pixels 1024 x 768 pixels
Display type TFT color
Touch screen material glass covered by plastic film
Touch screen type analog resistive
Colors 64 k
Backlight type LED CCFL
Backlight life 40 000 h typ at 25 °C 50 000 h typ at 25 °C
Brightness 150 cd/m² 200 cd/m² 300 cd/m²
Housing
Protection class front IP66
Protection class rear IP20
Front side material Zamak Aluminium
Reverse side material Zamak Aluminium
System resources
Processor type ARM Cortex A8: 600 MHz MIPS + FPU: 600 MHz
Operating system, version Microsoft Windows CE 6.0
HMI software Panel Builder 600 for CP6xx control panels (not CP6xx-WEB). PB610 is included in Automation Builder
Visualization of AC500 web server yes, with CP6xx-WEB
User memory type, capacity Flash Disk, 128 MB
7 RAM type, capacity 256 MB DDR
Interfaces
Ethernet ports number, type 2 - 10/100 Mbit (with integrated Switch function) 1 - 10/100 Mbit
USB ports number, type 1 - host interface, 2 - host interface, 1 - host interface,
version 2.0 1 ver. 2.0, 1 ver. 2.0 and 1.1 version 2.0
Serial ports number, type 1 - RS-232, RS-485, RS-422, software configurable 2 - RS-232, RS-485, RS-422, software configurable
Additional ports number, type 1 - Expansion slot 2 - Expansion slot 1 - Aux. port for future modules
for future modules for future modules
Card slot number, type 1 - SD card slot
Power supply voltage nominal 24 V DC
+ tolerance 18...30 V DC
Current consumption 0.4 A 0.7 A 1.0 A 1.1 A 1.2 A
Battery type Rechargeable Lithium battery, not user-replaceable
Weight 0.95 kg 1.15 kg 1.1 kg 2.1 kg 2.9 kg 3.8 kg
Faceplate (L x H) 149 x 109 mm 187 x 147 mm 287 x 232 mm 337 x 267 mm 392 x 307 mm
Cutout (L x H) 136 x 96 mm 176 x 136 mm 276 x 221 mm 326 x 256 mm 381 x 296 mm
Environmental conditions
Operating temperature range 0...50 °C
Operating humidity range 5...85 % relative humidity, non-condensing
Storage temperature range -20...+70 °C
Storage humidity range 5...85 % relative humidity, non-condensing
For the entire range (CP6xx with PB610 from V1.90)
Vector graphics ?
Object dynamics (types) ?
True type fonts ?
Multiple driver communication 4
Unicode capability (1) ?
Multilanguage capability ?
Runtime language switching ?
Recipes (capacity) Flash memory storage limited only by available memory
Alarms ?
Data acquisition + capacity Flash memory storage limited only by available memory
Trend presentation + capacity Flash memory storage limited only by available memory
Historical event list ?
Users/passwords ?
Hardware realtime clock, battery back-up ?
Screen saver ?
Integration within Automation Builder ?
Report printing via USB-printers ?
Off-line and on-line simulation ?
Remote access via ?
Windows Client or VNC server
Approvals RoHS, cUL, DNV, C-Tick , KCC
(1) Including Chinese character sets.
