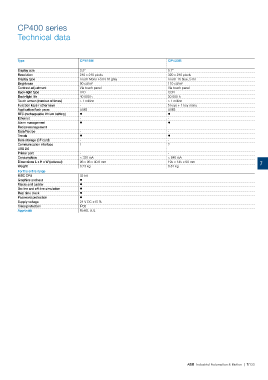

CP400 series

Technical data

Type CP415M CP430B

Display size 3.5" 5.7"
Resolution 240 x 240 pixels 320 x 240 pixels
Display type Touch Mono FSTN 16 grey Touch 16 blue, STN
Brightness 90 cd/m² 110 cd/m²
Contrast adjustment Via touch panel Via touch panel
Back-light type LED CCFL
Back-light life 40 000 h 50 000 h
Touch screen (number of times) > 1 million > 1 million
Function keys / other keys - 5 keys + 1 key menu
Application fash prom 4 MB 4 MB
RTC (rechargeable lithium battery) ? ?
Ethernet - -
Alarm management ? ?
Recipe management - -
Data/Recipe - -
Trends ? ?
Data storage (CF card) - -
Communication interface 1 2
USB 2.0 - -
Printer port - -
Consumption < 330 mA < 840 mA
Dimensions L x H x W (external) 96 x 96 x 40.6 mm 195 x 145 x 60 mm 7
Weight 0.23 kg 0.81 kg
For the entire range
RISC CPU 32 bit
Graphics and text ?
Macro and Ladder ?
On-line and off-line simulation ?
Real time clock ?
Password protection ?
Supply voltage 24 V DC ±15 %
Class protection IP65
Approvals RoHS, cUL
