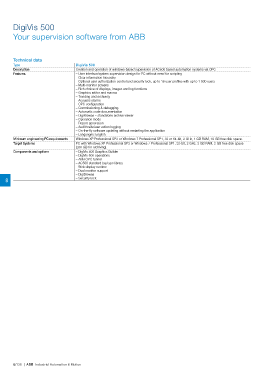

DigiVis 500

Your supervision software from ABB

Technical data
Type DigiVis 500
Description Creation and operation of windows-based supervision of AC500 based automation systems via OPC
Features – User interface/system supervision design for PC without need for scripting
– Clear information hierarchy
– Optional user authorization control and security lock, up to 16 user profiles with up to 1 000 users
– Multi-monitor screens
– Rich choice of displays, images and log functions
– Graphics editor and macros
– Trending and archiving
– Acoustic alarms
– OPC configuration
– Commissioning & debugging
– Automatic code documentation
– DigiBrowse – standalone archive viewer
– Operation mode
– Report generation
– Audit trails/user action logging
– On-the-fly software updating without restarting the application
– Languages: English.
Minimum engineering PC requirements Windows XP Professional SP3 or Windows 7 Professional SP1, 32 or 64-bit, 2 GHz, 1 GB RAM, 10 GB free disk space.
Target Systems PC with Windows XP Professional SP3 or Windows 7 Professional SP1, 32-bit, 2 GHz, 3 GB RAM, 2 GB free disk space
(=80 GB for archiving).
Components and options – DigiVis 500 Graphics Builder
– DigiVis 500 operations
– ABB OPC tunnel
– AC500 standard tag type library
– Web display runtime
– Dual monitor support
– DigiBrowse
8 – Security lock.
