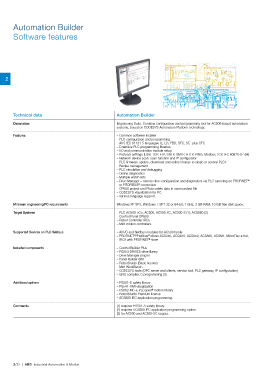

Automation Builder

Software features

2

Technical data Automation Builder

Description Engineering Suite. Contains configuration and programming tool for AC500-based automation
systems, based on CODESYS Automation Platform technology.
Features – Common software installer
– PLC configuration and programming
– All 5 IEC 61131-5 languages IL, LD, FBD, SFC, ST, plus CFC
– Extensive PLC programming libraries
– I/O and communication module setup
– Protocol settings (UDP, TCP, FTP, SNTP, SMTP, HTTP, PING, Modbus TCP, IEC 60870-5-104)
– Network device scan: scan function and IP configurator
– PLC firmware update, download and online change to single or several PLCs
– Recipe management
– PLC simulation and debugging
– Online diagnostics
– Multiple watch lists
– Drive Manager – remote drive configuration and diagnostics via PLC tunneling on PROFINET
®
or PROFIBUS connection
®
– CP600 project and Pluto safety data in same project file
– CODESYS visualization for PC
– Various language support.
Minimum engineering PC requirements Windows XP SP3, Windows 7 SP1 32 or 64-bit, 1 GHz, 3 GB RAM, 10 GB free disk space.
Target Systems – PLC AC500-eCo, AC500, AC500-XC, AC500-S (1), ACS880 (2)
– Control Panel CP600
– Robot Controller IRC5
– Mint motion controllers.

Supported Devices on PLC feldbus – All I/O and fieldbus modules for AC500 family
®
®
– PROFINET /Profibus drives ACS355, ACQ810, ACS850, ACS880, ACSM1, MicroFlex e150,
IRC5 with PROFINET slave
®
Included components – Control Builder Plus
– PS553-DRIVES drive library
– Drive Manager plug-in
– Panel Builder 600
– RobotStudio (Basic license)
– Mint WorkBench
– CODESYS tools (OPC server and clients, service tool, PLC gateway, IP configuration)
– GNU compiler, C programming (3).
Additional options – PS501-S safety library
– PS541-HMI visualization
®
– PS552-MC-E PLCopen motion library
– RobotStudio Premium license
– ACS880 IEC application programming.
Comments (1) requires PS501-S safety library.
(2) requires ACS880 IEC application programming option.
(3) for AC500 and AC500-XC targets.
