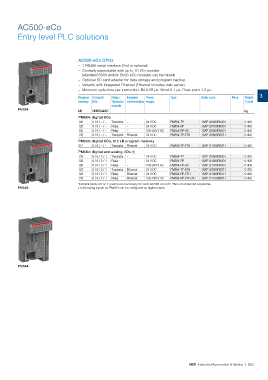

AC500-eCo

Entry level PLC solutions

AC500-eCo CPUs
– 1 RS485 serial interface (2nd is optional)
– Centrally expandable with up to 10 I/O modules
(standard S500 and/or S500-eCo modules can be mixed)
– Optional SD card adapter for data storage and program backup
– Variants with integrated Ethernet (Ethernet includes web server)
– Minimum cycle time per instruction: Bit 0.08 µs, Word 0.1 µs, Float-point 1.2 µs.
3
Program Onboard Relay / Integrated Power Type Order code Price Weight
memory I/Os Transistor communication supply (1 pce)
outputs
PM554 kB DI/DO/AI/AO kg
PM554: digital I/Os
128 8 / 6 / – / – Transistor – 24 V DC PM554-TP 1SAP120600R0001 0.300
128 8 / 6 / – / – Relay – 24 V DC PM554-RP 1SAP120700R0001 0.400
128 8 / 6 / – / – Relay – 100-240 V AC PM554-RP-AC 1SAP120800R0001 0.400
128 8 / 6 / – / – Transistor Ethernet 24 V DC PM554-TP-ETH 1SAP120600R0071 0.400
PM556: digital I/Os, 512 kB program memory
512 8 / 6 / – / – Transistor Ethernet 24 V DC PM556-TP-ETH 1SAP121200R0071 0.400
PM564: digital and analog I/Os (1)
128 6 / 6 / 2 / 1 Transistor – 24 V DC PM564-TP 1SAP120900R0001 0.300
128 6 / 6 / 2 / 1 Relay – 24 V DC PM564-RP 1SAP121000R0001 0.400
128 6 / 6 / 2 / 1 Relay – 100-240 V AC PM564-RP-AC 1SAP121100R0001 0.400
128 6 / 6 / 2 / 1 Transistor Ethernet 24 V DC PM564-TP-ETH 1SAP120900R0071 0.300
128 6 / 6 / 2 / 1 Relay Ethernet 24 V DC PM564-RP-ETH 1SAP121000R0071 0.400
128 6 / 6 / 2 / 1 Relay Ethernet 100-240 V AC PM564-RP-ETH-AC 1SAP121100R0071 0.400
Terminal blocks (9 or 11 poles) are necessary for each AC500-eCo I/O. They are delivered separately.
PM556 (1) All analog inputs on PM564 can be confgured as digital inputs.

PM564

ABB Industrial Automation & Motion | 3/37
