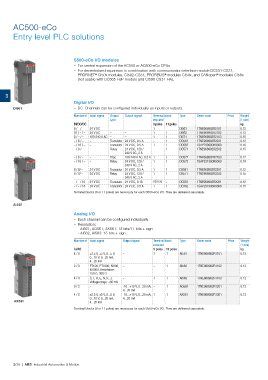

AC500-eCo

Entry level PLC solutions

S500-eCo I/O modules
– For central expansion of the AC500 or AC500-eCo CPUs
– For decentralized expansion in combination with communication interface module DC551-CS31,
PROFINET CI50x modules, CI592-CS31, PROFIBUS modules CI54x, and CANopen modules CI58x
®
®
®
(not usable with DC505-FBP module and CI590-CS31-HA).
3
Digital I/O
DI561 – DC: Channels can be confgured individually as inputs or outputs.
Number of Input signal Output Output signal Terminal block Type Order code Price Weight
type required (1 pce)
DI/DO/DC 9 poles 11 poles kg
8 / – / – 24 V DC – – 1 – DI561 1TNE968902R2101 0.12
16 / – / – 24 V DC – – 1 1 DI562 1TNE968902R2102 0.12
8 / – / – 100-240 V AC – – 1 1 DI571 1TNE968902R2103 0.15
– / 8 / – – Transistor 24 V DC, 0.5 A – 1 DO561 1TNE968902R2201 0.12
– / 16 / – – Transistor 24 V DC, 0.5 A 1 1 DO562 1SAP230900R0000 0.16
– / 8 / – – Relay 24 V DC, 120 / – 1 DO571 1TNE968902R2202 0.15
240 V AC, 2 A
– / 8 / – – Triac 100-240 V AC, 0.3 A 1 1 DO572 1TNE968902R2203 0.12
– / 16 / – – Relay 24 V DC, 120 / 1 1 DO573 1SAP231300R0000 0.19
240 V AC, 2 A
8 / 8/ – 24 V DC Transistor 24 V DC, 0.5 A 1 1 DX561 1TNE968902R2301 0.12
8 / 8/ – 24 V DC Relay 24 V DC, 120 / 1 1 DX571 1TNE968902R2302 0.15
240 V AC, 2 A
– / – / 16 24 V DC Transistor 24 V DC, 0.1A HE10-20 – DC561 1TNE968902R2001 0.12
– / – / 16 24 V DC Transistor 24 V DC, 0.5 A 1 1 DC562 1SAP231900R0000 0.15
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. They are delivered separately.

AI562
Analog I/O
– Each channel can be confgured individually
– Resolution:
- AI561, AO561, AX561: 12 bits/11 bits + sign
- AI562, AI563: 15 bits + sign.
Number of Input signal Output signal Terminal block Type Order code Price Weight
required (1 pce)
AI/AO 9 poles 11 poles kg
4 / 0 ±2.5 V, ±5 V, 0...5 V, – 1 1 AI561 1TNE968902R1101 0.12
0...10 V, 0...20 mA,
4...20 mA
2 / 0 PT100, PT1000, Ni100, – – 1 AI562 1TNE968902R1102 0.12
Ni1000, Resistance:
150 O, 300 O
4 / 0 S, T, R, E, N, K, J, – 1 1 AI563 1TNE968902R1103 0.12
Voltage range: ±80 mV
0 / 2 – -10...+10 V, 0...20 mA, – 1 AO561 1TNE968902R1201 0.12
4...20 mA
4 / 2 ±2.5 V, ±5 V, 0...5 V, -10...+10 V, 0...20 mA, 1 1 AX561 1TNE968902R1301 0.13
0...10 V, 0...20 mA, 4...20 mA
AX561 4...20 mA
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. They are delivered separately.
