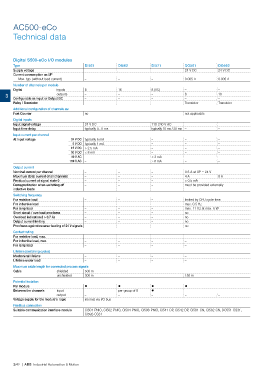

AC500-eCo

Technical data

Digital S500-eCo I/O modules
Type DI561 DI562 DI571 DO561 DO562
Supply voltage – – – 24 V DC 24 V DC
Current consumption on UP
Max. typ. (without load current) – – – 0.005 A 0.005 A
Number of channels per module
Digital inputs 8 16 8 (AC) – –
3 outputs – – – 8 16
Confgurable as Input or Output DC – – – – –
Relay / Transistor – – – Transistor Transistor
Additional confguration of channels as:
Fast Counter no not applicable
Digital inputs
Input signal voltage 24 V DC 110-240 V AC – –
Input time delay typically 4...8 ms typically 15 ms / 30 ms – –
Input current per channel
At Input voltage 24 V DC typically 5 mA – – –
5 V DC typically 1 mA – – –
15 V DC > 2.5 mA – – –
30 V DC < 8 mA – – –
40 V AC – < 3 mA – –
159 V AC – > 6 mA – –
Output current
Nominal current per channel – – – 0.5 A at UP = 24 V
Maximum (total current of all channels) – – – 4 A 8 A
Residual current at signal state 0 – – – < 0.5 mA
Demagnetization when switching off – – – must be provided externally
inductive loads
Switching frequency
For resistive load – – – limited by CPU cycle time
For inductive load – – – max. 0.5 Hz
For lamp load – – – max. 11 Hz at max. 5 W
Short circuit / overload proofness – – – no
Overload indication (I > 0.7 A) – – – no
Output current limiting – – – no
Proofness against reverse feeding of 24 V signals – – – no
Contact rating
For resistive load, max. – – – –
For inductive load, max. – – – –
For lamp load – – – –
Lifetime (switching cycles)
Mechanical lifetime – – – –
Lifetime under load – – – –
Maximum cable length for connected process signals
Cable shielded 500 m
unshielded 300 m 150 m
Potential isolation
Per module ? ? ? ?
Between the channels input – per group of 8 ? –
output – – – – –
Voltage supply for the module's logic internal via I/O bus
Fieldbus connection
Suitable communication interface module CI501-PNIO, CI502-PNIO, CI504-PNIO, CI506-PNIO, CI541-DP, CI542-DP, CI581-CN, CI582-CN, DC551-CS31,
CI592-CS31

3/42 | ABB Industrial Automation & Motion
