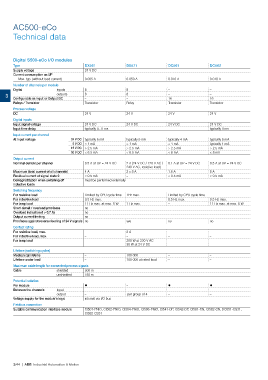

AC500-eCo

Technical data

Digital S500-eCo I/O modules
Type DX561 DX571 DC561 DC562
Supply voltage 24 V DC
Current consumption on UP
Max. typ. (without load current) 0.005 A 0.050 A 0.010 A 0.010 A
Number of channels per module
Digital inputs 8 8 – –
3 outputs 8 8 – –
Confgurable as Input or Output DC – – 16 16
Relays / Transistor Transistor Relay Transistor Transistor
Process voltage
DC 24 V 24 V 24 V 24 V
Digital inputs
Input signal voltage 24 V DC 24 V DC 24 V DC 24 V DC
Input time delay typically 4...8 ms typically 8 ms
Input current per channel
At Input voltage 24 V DC typically 5 mA typically 5 mA typically 4 mA typically 5 mA
5 V DC < 1 mA < 1 mA < 1 mA typically 1 mA
15 V DC > 2.5 mA > 2.5 mA > 2.5 mA > 2.5 mA
30 V DC < 6.5 mA < 6.5 mA < 6 mA < 8 mA
Output current
Nominal current per channel 0.5 A at UP = 24 V DC 2 A (24 V DC / 120 V AC / 0.1 A at UP = 24 V DC 0.5 A at UP = 24 V DC
240 V AC, resistive load)
Maximum (total current of all channels) 4 A 2 x 8 A 1.6 A 8 A
Residual current at signal state 0 < 0.5 mA – < 0.5 mA < 0.5 mA
Demagnetization when switching off must be performed externally
inductive loads
Switching frequency
For resistive load Limited by CPU cycle time 1Hz max. Limited by CPU cycle time
For inductive load 0.5 Hz max. – 0.5 Hz max. 0.5 Hz max.
For lamp load 11 Hz max. at max. 5 W 1 Hz max. – 11 Hz max. at max. 5 W
Short circuit / overload proofness no
Overload indication (I > 0.7 A) no
Output current limiting no
Proofness against reverse feeding of 24 V signals no yes no no
Contact rating
For resistive load, max. – 2 A – –
For inductive load, max. – – – –
For lamp load – 200 W at 230 V AC – –
30 W at 24 V DC
Lifetime (switching cycles)
Mechanical lifetime – 100 000 – –
Lifetime under load – 100 000 at rated load – –
Maximum cable length for connected process signals
Cable shielded 500 m
unshielded 150 m
Potential isolation
Per module ? – ? ?
Between the channels input – – – –
output – per group of 4 – –
Voltage supply for the module's logic internal via I/O bus
Fieldbus connection
Suitable communication interface module CI501-PNIO, CI502-PNIO, CI504-PNIO, CI506-PNIO, CI541-DP, CI542-DP, CI581-CN, CI582-CN, DC551-CS31,
CI592-CS31
