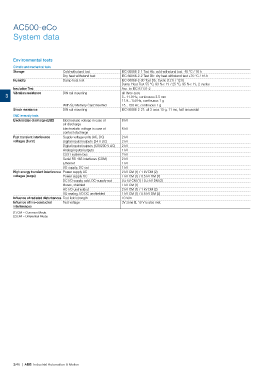

AC500-eCo

System data

Environmental tests
Climatic and mechanical tests
Storage Cold withstand test IEC 60068-2-1 Test Ab: cold withstand test -40 °C / 16 h
Dry heat withstand test IEC 60068-2-2 Test Bb: dry heat withstand test +70 °C / 16 h
Humidity Damp heat test IEC 60068-2-30 Test Db: Cyclic (12 h / 12 h)
Damp-Heat Test 55 °C, 93 % r. H. / 25 °C, 95 % r. H., 2 cycles
Insulation Test Acc. to IEC 61131-2
Vibration resistance DIN rail mounting all three axes
3 5...11.9 Hz, continuous 3.5 mm
11.9…150 Hz, continuous 1 g
With SD Memory Card inserted 15…150 Hz, continuous 1 g
Shock resistance DIN rail mounting IEC 60068-2-27: all 3 axes 15 g, 11 ms, half-sinusoidal
EMC immunity tests
Electrostatic discharge (ESD) Electrostatic voltage in case of 8 kV
air discharge
Electrostatic voltage in case of 6 kV
contact discharge
Fast transient interference Supply voltage units (AC, DC) 2 kV
voltages (burst) Digital inputs/outputs (24 V DC) 2 kV
Digital inputs/outputs (120/230 V AC) 2 kV
Analog inputs/outputs 1 kV
CS31 system bus 2 kV
Serial RS-485 interfaces (COM) 2 kV
Ethernet 1 kV
I/O supply, DC-out 1 kV
High energy transient interference Power supply AC 2 kV CM (1) / 1 kV DM (2)
voltages (surge) Power supply DC 1 kV CM (1) / 0.5 kV DM (2)
DC I/O supply, add. DC-supply-out 0.5 kV CM (1) / 0.5 kV DM (2)
Buses, shielded 1 kV CM (1)
AC-I/O unshielded 2 kV CM (1) / 1 kV DM (2)
I/O analog, I/O DC unshielded 1 kV CM (1) / 0.5 kV DM (2)
Infuence of radiated disturbances Test field strength 10 V/m
Infuence of line-conducted Test voltage 3V zone B, 10 V is also met.
interferences
(1) CM = Common Mode.
(2) DM = Differential Mode.

3/48 | ABB Industrial Automation & Motion
