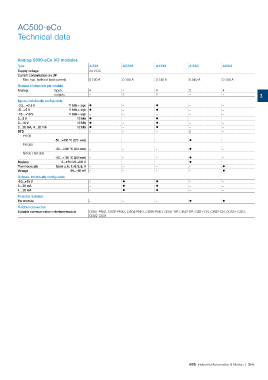

AC500-eCo

Technical data

Analog S500-eCo I/O modules
Type AI561 AO561 AX561 AI562 AI563
Supply voltage 24 V DC
Current consumption on UP
Max. typ. (without load current) 0.100 A 0.100 A 0.140 A 0.040 A 0.100 A
Number of channels per module
Analog inputs 4 – 4 2 4
outputs – 2 2 – – 3
Inputs, individually confgurable
-2.5…+2.5 V 11 bits + sign ? – ? – –
-5…+5 V 11 bits + sign ? – ? – –
-10…+10 V 11 bits + sign – – – – –
0…5 V 12 bits ? – ? – –
0…10 V 12 bits ? – ? – –
0…20 mA, 4…20 mA 12 bits ? – ? – –
RTD – – – 2 –
Pt100
-50…+400 °C (2/3- wire) – – – ? –
Pt1000
-50…+400 °C (2/3-wire) – – – ? –
Ni100 / Ni1000
-50…+150 °C (2/3-wire) – – – ? –
Resistor 0…150 O/0...300 O – – – ? –
Thermocouple Types J, K, T, N, S, E, R – – – – ?
Voltage -80...+80 mV – – – – ?
Outputs, individually confgurable
-10...+10 V – ? ? – –
0…20 mA – ? ? – –
4…20 mA – ? ? – –
Potential isolation
Per module – – – ? ?
Fieldbus connection
Suitable communication interface module CI501-PNIO, CI502-PNIO, CI504-PNIO, CI506-PNIO, CI541-DP, CI542-DP, CI581-CN, CI582-CN, DC551-CS31,
CI592-CS31
