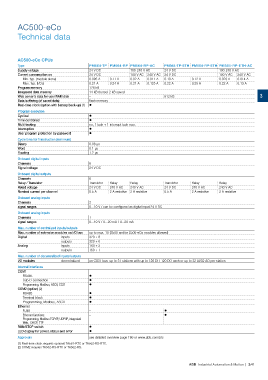

AC500-eCo

Technical data





AC500-eCo CPUs
Type PM564-TP PM564-RP PM564-RP-AC PM564-TP-ETH PM564-RP-ETH PM564-RP-ETH-AC
Supply voltage 24 V DC 100-240 V AC 24 V DC 100-240 V AC
Current consumption on 24 V DC 100 V AC 240 V AC 24 V DC 100 V AC 240 V AC
Min. typ. (module alone) 0.095 A 0.11 A 0.02 A 0.011 A 0.10 A 0.12 A 0.023 A 0.014 A
Max. typ. (I/Os) 0.21 A 0.24 A 0.21 A 0.125 A 0.22 A 0.25 A 0.22 A 0.13 A
Program memory 128 kB
Integrated data memory 14 kB thereof 2 kB saved
Web server's data for user RAM disk – 512 kB 3
Data buffering (of saved data) flash memory
Real-time clock (option with battery back-up) (1) ?
Program execution
Cyclical ?
Time controlled ?
Multi tasking no, 1 task + 1 interrupt task max.
Interruption ?
User program protection by password ?
Cycle time for 1 instruction (minimum)
Binary 0.08 µs
Word 0.1 µs
Floating 1.2 µs
Onboard digital inputs
Channels 6
Signal voltage 24 V DC
Onboard digital outputs
Channels 6
Relay / Transistor Transistor Relay Relay Transistor Relay Relay
Rated voltage 24 V DC 240 V AC 240 V AC 24 V DC 240 V AC 240 V AC
Nominal current per channel 0.5 A 2 A resistive 2 A resistive 0.5 A 2 A resistive 2 A resistive
Onboard analog inputs
Channels 2
signal ranges 0...10 V / can be configured as digital input 24 V DC
Onboard analog inputs
Channels 1
signal ranges 0...10 V / 0...20 mA / 4...20 mA
Max. number of centralized inputs/outputs
Max. number of extension modules on I/O bus up to max. 10 (S500 and/or S500-eCo modules allowed)
Digital inputs 320 + 8
outputs 320 + 6
Analog inputs 160 + 2
outputs 160 + 1
Max. number of decentralized inputs/outputs
I/O modules decentralized on CS31 bus: up to 31 stations with up to 120 DI / 120 DO each or up to 32 AI/32 AO per station
Internal interfaces
COM1
RS485 ?
Sub-D connection ?
Programming, Modbus, ASCII, CS31 ?
COM2 (option) (2)
RS485 ?
Terminal block ?
Programming, Modbus, ASCII ?
Ethernet
RJ45 – ?
Ethernet functions: – ?
Programming, Modbus TCP/IP, UDP/IP, integrated
Web, DHCP, FTP
RUN/STOP switch ?
LED display for power, status and error ?
Approvals see detailed overview page 166 or www.abb.com/plc
(1) Real-time clock requires optional TA561-RTC or TA562-RS-RTC.
(2) COM2 requires TA562-RS-RTC or TA562-RS.
