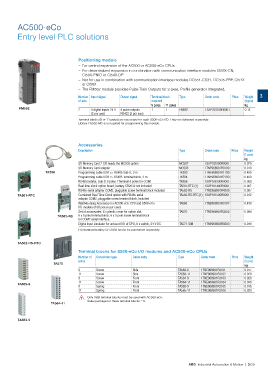

AC500-eCo

Entry level PLC solutions

Positioning module
– For central expansion of the AC500 or AC500-eCo CPUs
– For decentralized expansion in combination with communication interface modules CI58X-CN,
CI50X-PNIO or CI54X-DP
– Not for use in combination with communication interface modules DC551-CS31, DC505-FBP, CI51X
or CI59X
– The FM562 module provides Pulse Train Outputs for 2 axes. Profle generator integrated.
Number Input signal Output signal Terminal block Type Order code Price Weight 3
of axis required (1 pce)
9 poles 11 poles kg
FM562 2 4 digital inputs 24 V 4 pulse outputs 1 1 FM562 1SAP233100R0001 0.15
(2 per axis) RS422 (2 per axis)
Terminal blocks (9 or 11 poles) are necessary for each S500-eCo I/O. They are delivered separately.
Library PS552-MC-E is required for programming this module.

Accessories
Description Type Order code Price Weight
(1 pce)
kg
SD Memory Card 2 GB needs the MC503 option MC502 1SAP180100R0001 0.020
SD Memory Card adapter MC503 1TNE968901R0100 0.010
TK506 Programming cable USB => RS485 Sub-D, 3 m TK503 1TNE968901R1100 0.400
Programming cable USB => RS485 Terminal block, 3 m TK504 1TNE968901R2100 0.400
RS485 isolator, Sub-D 9 poles / Terminal 5 poles for COM1 TK506 1SAP186100R0001 0.080
Real time clock option board, battery CR2032 not included TA561-RTC (1) 1SAP181400R0001 0.007
RS485 serial adapter COM2, pluggable screw terminal block included TA562-RS 1TNE968901R4300 0.007
TA561-RTC Combined Real Time Clock option with RS485 serial TA562-RS-RTC (1) 1SAP181500R0001 0.012
adapter COM2, pluggable screw terminal block, included
Wall Mounting Accessory for AC500-eCo CPU and S500-eCo TA566 1TNE968901R3107 0.450
I/O modules (100 pieces per case)
Set of accessories: 6 x plastic cover for option slot, TA570 1TNE968901R3203 0.090
TA562-RS 6 x 5 pole terminal block, 6 x 5 pole screw terminal block
for COM2 serial interface.
Digital input simulator for onboard I/O of CPU, 6 x switch, 24 V DC TA571-SIM 1TNE968903R0203 0.040
(1) Standard battery CR 2032 has to be purchased separately.

TA562-RS-RTC
Terminal blocks for S500-eCo I/O modules and AC500-eCo CPUs
Number of Connection type Cable entry Type Order code Price Weight
poles (1 pce)
TA570
kg
9 Screw Side TA563-9 1TNE968901R3101 0.017
11 Screw Side TA563-11 1TNE968901R3102 0.020
9 Screw Front TA564-9 1TNE968901R3103 0.026
11 Screw Front TA564-11 1TNE968901R3104 0.035
TA565-9
9 Spring Front TA565-9 1TNE968901R3105 0.016
11 Spring Front TA565-11 1TNE968901R3106 0.020
Only ABB terminal blocks must be used with AC500-eCo.
Sales package for these terminal blocks = 6.
TA564-11

TA563-9

ABB Industrial Automation & Motion | 3/39
