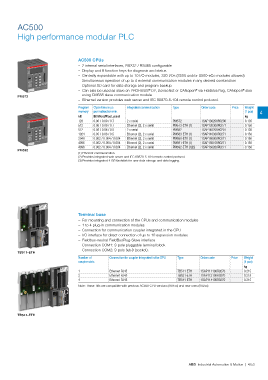

AC500

High performance modular PLC

AC500 CPUs
– 2 internal serial interfaces, RS232 / RS485 confgurable
– Display and 8 function keys for diagnosis and status
– Centrally expandable with up to 10 I/O modules, 320 I/Os (S500 and/or S500-eCo modules allowed)
– Simultaneous operation of up to 4 external communication modules in any desired combination
– Optional SD card for data storage and program backup
– Can also be used as slave on PROFIBUS DP, DeviceNet or CANopen via FieldBusPlug, CANopen also
®
®
®
PM572 using CM588 slave communication module
– Ethernet version provides web server and IEC 60870-5-104 remote control protocol.
Program Cycle time in µs Integrated communication Type Order code Price Weight
memory per instruction min. (1 pce) 4
kB Bit/Word/Float. point kg
128 0.06 / 0.09 / 0.7 2 x serial PM572 1SAP130200R0200 0.135
512 0.06 / 0.09 / 0.7 Ethernet (2), 2 x serial PM573-ETH (1) 1SAP130300R0271 0.150
512 0.05 / 0.06 / 0.5 2 x serial PM582 1SAP140200R0201 0.135
1024 0.05 / 0.06 / 0.5 Ethernet (2), 2 x serial PM583-ETH (1) 1SAP140300R0271 0.150
2048 0.002 / 0.004 / 0.004 Ethernet (2), 2 x serial PM590-ETH (1) 1SAP150000R0271 0.150
4096 0.002 / 0.004 / 0.004 Ethernet (2), 2 x serial PM591-ETH (1) 1SAP150100R0271 0.150
4096 0.002 / 0.004 / 0.004 Ethernet (2), 2 x serial PM592-ETH (1)(3) 1SAP150200R0271 0.150
PM592
(1) Ethernet communication.
(2) Provides integrated web server and IEC 60870-5-104 remote control protocol.
(3) Provides integrated 4 GB fashdisk for user data storage and data logging.

Terminal base
– For mounting and connection of the CPUs and communication modules
– 1 to 4 plug-in communication modules
– Connection for communication coupler integrated in the CPU
– I/O interface for direct connection of up to 10 expansion modules
– Fieldbus-neutral FieldBusPlug-Slave interface
– Connection COM1: 9-pole pluggable terminal block
– Connection COM2: 9-pole Sub-D (socket).
TB511-ETH
Number of Connection for coupler integrated in the CPU Type Order code Price Weight
coupler slots (1 pce)
kg
1 Ethernet RJ45 TB511-ETH 1SAP111100R0270 0.215
2 Ethernet RJ45 TB521-ETH 1SAP112100R0270 0.215
4 Ethernet RJ45 TB541-ETH 1SAP114100R0270 0.215
Note: These TBs are compatible with previous AC500 CPU versions (R01xx) and new ones (R02xx).

TB541-ETH

ABB Industrial Automation & Motion | 4/53
