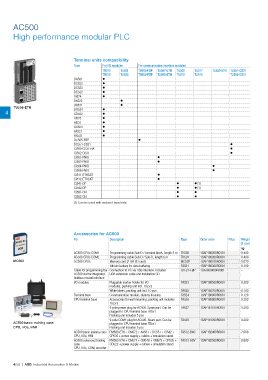

AC500

High performance modular PLC

Terminal units compatibility
Type For I/O modules For communication interface modules
TU515 TU531 TU505-FBP TU507-ETH TU509 TU517 TU520-ETH TU551-CS31
TU516 TU532 TU506-FBP TU508-ETH TU510 TU518 TU552-CS31
DA501 ?
DC522 ?
DC523 ?
DC532 ?
DI524 ?
DX522 ?
DX531 ?
TU508-ETH DO524 ?
4 CD522 ?
AI523 ?
AI531 ?
AO523 ?
AX521 ?
AX522 ?
DC505-FBP ?
DC551-CS31 ?
CI590-CS31-HA ?
CI592-CS31 ?
CI501-PNIO ?
CI502-PNIO ?
CI504-PNIO ?
CI506-PNIO ?
CI511-ETHCAT ?
CI512-ETHCAT ?
CI541-DP ? ? (1)
CI542-DP ? ? (1)
CI581-CN ? ?
CI582-CN ? ?
(1) Can be used with reduced baud rate.

Accessories for AC500
For Description Type Order code Price Weight
(1 pce)
kg
AC500 CPUs COM1 Programming cable Sub-D / terminal block, length 5 m TK502 1SAP180200R0101 0.400
AC500 CPUs COM2 Programming cable Sub-D / Sub-D, length 5 m TK501 1SAP180200R0001 0.400
MC502 AC500 CPUs Memory card (2 GB SD card) MC502 1SAP180100R0001 0.020
Lithium battery for data buffering TA521 1SAP180300R0001 0.100
Cable for programming the Connection to PC via USB interface. Includes UTF21-FBP 1SAJ929400R0001 –
AC500 via the integrated USB extension cable and installation CD
fieldbus neutral interface
I/O modules Pluggable marker holder for I/O TA523 1SAP180500R0001 0.300
modules, packing unit incl. 10 pcs
White labels, packing unit incl. 10 pcs TA525 1SAP180700R0001 0.100
Terminal base Communication module, dummy housing TA524 1SAP180600R0001 0.120
CPU terminal base Accessories for wall mounting, packing unit includes TA526 1SAP180800R0001 0.200
10 pcs
5-pole power plug for AC500. Spare part. Can be TA527 1SAP181100R0001 0.200
plugged to CPU terminal base TB5x1.
Packing unit includes 5 pcs
9-pole COM1 plug for AC500. Spare part. Can be TA528 1SAP181200R0001 0.200
AC500 basic training case plugged to CPU terminal base TB5x1.
CPU, I/Os, HMI Packing unit includes 5 pcs
AC500 basic training case PM583-ETH + CM572 + AX561 + DC551 + CI542 + TA512-BAS 1SAP182400R0001 7.000
CPU, I/Os, HMI CP635 + power supply + cables + simulation stand
AC500 advanced training PM583-ETH + CM574 + CM578 + CM579 + CP635 + TA513-ADV 1SAP182500R0001 8.800
case CD522 + power supply + cables + simulation stand
CPU, I/Os, COM, encoder
