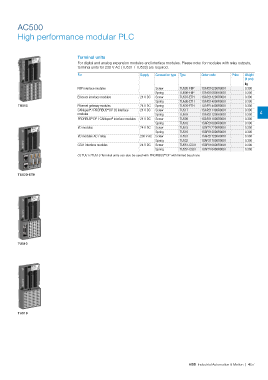

AC500

High performance modular PLC

Terminal units
For digital and analog expansion modules and interface modules. Please note: for modules with relay outputs,
terminal units for 230 V AC (TU531 / TU532) are required.
For Supply Connection type Type Order code Price Weight
(1 pce)
kg
FBP interface modules – Screw TU505-FBP 1SAP210200R0001 0.300
Spring TU506-FBP 1SAP210000R0001 0.300
Ethernet interface modules 24 V DC Screw TU507-ETH 1SAP214200R0001 0.300
Spring TU508-ETH 1SAP214000R0001 0.300
TU515 Ethernet gateway modules 24 V DC Spring TU520-ETH 1SAP214400R0001 0.300
CANopen / PROFIBUS DP (1) interface 24 V DC Screw TU517 1SAP211400R0001 0.300
®
®
modules Spring TU518 1SAP211200R0001 0.300 4
PROFIBUS DP / CANopen interface modules 24 V DC Screw TU509 1SAP211000R0001 0.300
®
®
Spring TU510 1SAP210800R0001 0.300
I/O modules 24 V DC Screw TU515 1SAP212200R0001 0.300
Spring TU516 1SAP212000R0001 0.300
I/O modules AC / relay 230 V AC Screw TU531 1SAP217200R0001 0.300
Spring TU532 1SAP217000R0001 0.300
CS31 interface modules 24 V DC Screw TU551-CS31 1SAP210600R0001 0.300
Spring TU552-CS31 1SAP210400R0001 0.300
®
(1) TU517/TU518 Terminal units can also be used with PROFIBUS DP with limited baud rate.

TU520-ETH

TU510

TU518

ABB Industrial Automation & Motion | 4/57
