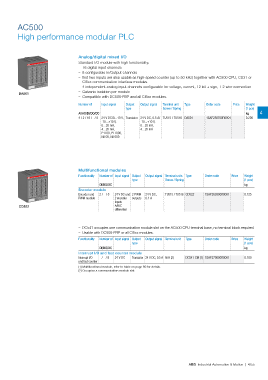

AC500

High performance modular PLC

Analog/digital mixed I/O
Standard I/O module with high functionality:
– 16 digital input channels
– 8 confgurable In/Output channels
– frst two inputs are also usable as high-speed counter (up to 50 kHz) together with AC500 CPU, CS31 or
CI5xx communication interface modules.
– 4 independent analog input channels confgurable for voltage, current, 12 bit + sign, 1-2 wire connection
– Galvanic isolation per module
DA501
– Compatible with DC505-FBP and all CI5xx modules.
Number of Input signal Output Output signal Terminal unit Type Order code Price Weight
type Screw / Spring (1 pce)
AI/AO/DI/DO/DC kg 4
4 / 2 / 16 / - / 8 24 V DC/0…10 V, Transistor 24 V DC, 0.5 A/ TU515 / TU516 DA501 1SAP250700R0001 0.200
-10…+10 V, -10…+10 V,
0…20 mA, 0…20 mA,
4…20 mA, 4…20 mA
PT100, PT1000,
Ni100, Ni1000

Multifunctional modules
Functionality Number of Input signal Output Output signal Terminal units Type Order code Price Weight
type Screw / Spring (1 pce)
DI/DO/DC kg
Encoder module
Encoder and 2 / – / 8 24 V DC and 2 PWM 24 V DC, TU515 / TU516 CD522 1SAP260300R0001 0.125
PWM module 2 encoder outputs 0.1 A
inputs
CD522 A/B/C
differential

– DC541 occupies one communication module slot on the AC500 CPU terminal base, no terminal block required
– Usable with DC505-FBP or all CI5xx modules.
Functionality Number of Input signal Output Output signal Terminal unit Type Order code Price Weight
type (1 pce)
DI/DO/DC kg
Interrupt I/O and fast counter module
Interrupt I/O – / – / 8 24 V DC Transistor 24 V DC, 0.5 A N/A (2) DC541-CM (1) 1SAP270000R0001 0.100
and fast counter
(1) Multifunctional module, refer to table on page 69 for details.
(2) Occupies a communication module slot.

ABB Industrial Automation & Motion | 4/55
