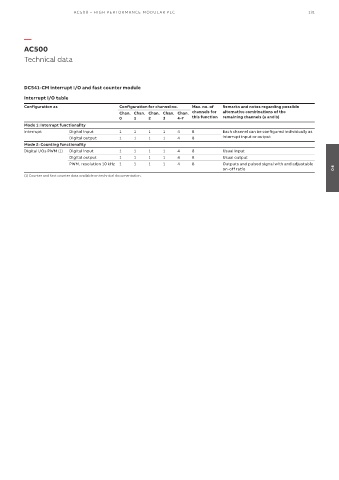

AC500 – HIGH PERFORMANCE MODUL AR PLC 131

—
AC500
Technical data

DC541-CM interrupt I/O and fast counter module

Interrupt I/O table
Configuration as Configuration for channel no. Max. no. of Remarks and notes regarding possible
Chan. Chan. Chan. Chan. Chan. channels for alternative combinations of the
0 1 2 3 4-7 this function remaining channels (a and b)
Mode 1: Interrupt functionality
Interrupt Digital input 1 1 1 1 4 8 Each channel can be configured individually as
Digital output 1 1 1 1 4 8 interrupt input or output
Mode 2: Counting functionality
Digital I/Os PWM (1) Digital input 1 1 1 1 4 8 Usual input
Digital output 1 1 1 1 4 8 Usual output
PWM, resolution 10 kHz 1 1 1 1 4 8 Outputs and pulsed signal with and adjustable
on-off ratio 04
(1) Counter and fast counter data available on technical documentation.
