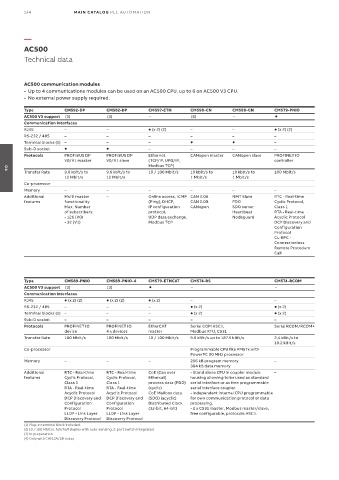

134 MAIN CATALOG PLC AUTOMATION

—
AC500
Technical data

AC500 communication modules
• Up to 4 communications modules can be used on an AC500 CPU, up to 6 on AC500 V3 CPU.
• No external power supply required.

Type CM592-DP CM582-DP CM597-ETH CM598-CN CM588-CN CM579-PNIO
AC500 V3 support (3) (3) – (4) – 
Communication interfaces
RJ45 – –  (x 2) (2) – –  (x 2) (2)
RS-232 / 485 – – – – – –
Terminal blocks (1) – – –   –
Sub-D socket   – – – –
Protocols PROFIBUS DP PROFIBUS DP Ethernet CANopen master CANopen slave PROFINET IO
V0/V1 master V0/V1 slave (TCP/IP, UPD/IP, controller
Modbus TCP)
Transfer Rate 9.6 kbit/s to 9.6 kbit/s to 10 / 100 Mbit/s 10 kbit/s to 10 kbit/s to 100 Mbit/s
04
12 Mbit/s 12 Mbit/s 1 Mbit/s 1 Mbit/s
Co-processor
Memory – – – – – –
Additional Multi master – Online access, ICMP CAN 2.0A NMT Slave RTC - Real-time
features functionality (Ping), DHCP, CAN 2.0B PDO Cyclic Protocol,
Max. Number IP configuration CANopen SDO server Class 1
of subscribers: protocol, Heartbeat RTA - Real-time
• 126 (V0) UDP data exchange, Nodeguard Acyclic Protocol
• 32 (V1) Modbus TCP DCP Discovery and
Configuration
Protocol
CL-RPC -
Connectionless
Remote Procedure
Call

Type CM589-PNIO CM589-PNIO-4 CM579-ETHCAT CM574-RS CM574-RCOM
AC500 V3 support (3) (3)  – –
Communication interfaces
RJ45  (x 2) (2)  (x 2) (2)  (x 2) – –
RS-232 / 485 – – –  (x 2)  (x 2)
Terminal blocks (1) – – –  (x 2)  (x 2)
Sub-D socket – – – – –
Protocols PROFINET IO PROFINET IO EtherCAT Serial COM ASCII, Serial RCOM/RCOM+
device 4 x devices master Modbus RTU, CS31
Transfer Rate 100 Mbit/s 100 Mbit/s 10 / 100 Mbit/s 9.6 kBit/s up to 187.5 kBit/s 2,4 kBit/s to
19.2 kBit/s
Co-processor Programmable CPU like PM57x with
PowerPC 50 MHz processor
Memory – – – 256 kB program memory –
384 kB data memory
Additional RTC - Real-time RTC - Real-time CoE (Can over • Stand alone CPU in coupler module –
features Cyclic Protocol, Cyclic Protocol, Ethercat) housing allowing to be used as standard
Class 1 Class 1 process data (PDO) serial interface or as free programmable
RTA - Real-time RTA - Real-time (cyclic) serial interface coupler.
Acyclic Protocol Acyclic Protocol CoE Mailbox data • Independent internal CPU programmable
DCP Discovery and DCP Discovery and (SDO) (acyclic) for own communication protocol or data
Configuration Configuration Distributed Clock processing.
Protocol Protocol (32-bit, 64-bit) • 2 x CS31 master, Modbus master/slave,
LLDP - Link Layer LLDP - Link Layer free configurable, protocols ASCII.
Discovery Protocol Discovery Protocol
(1) Plug-in terminal block included.
(2) 10 / 100 Mbit/s, full/half duplex with auto-sensing, 2-port switch integrated
(3) In preparation
(4) Only with CAN 2A/2B today
