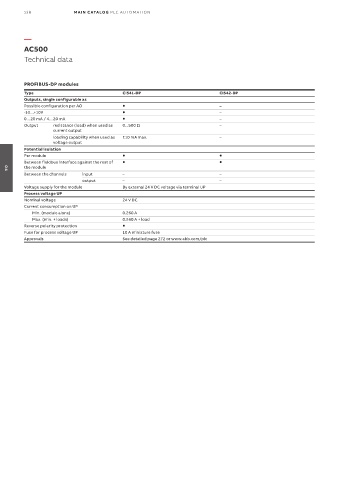

138 MAIN CATALOG PLC AUTOMATION

—
AC500
Technical data

PROFIBUS-DP modules
Type CI541-DP CI542-DP
Outputs, single configurable as
Possible configuration per AO  –
-10…+10V  –
0…20 mA / 4…20 mA  –
Output resistance (load) when used as 0...500 Ω –
current output
loading capability when used as ±10 mA max. –
voltage output
Potential isolation
Per module  
Between fieldbus interface against the rest of  
the module
04
Between the channels input – –
output – –
Voltage supply for the module By external 24 V DC voltage via terminal UP
Process voltage UP
Nominal voltage 24 V DC
Current consumption on UP
Min. (module alone) 0.260 A
Max. (min. + loads) 0.260 A + load
Reverse polarity protection 
Fuse for process voltage UP 10 A miniature fuse
Approvals See detailed page 272 or www.abb.com/plc
