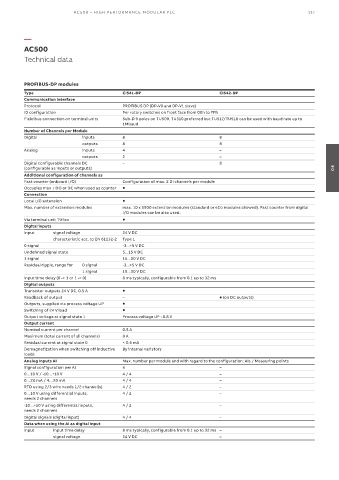

Technical data

PROFIBUS-DP modules
Type CI541-DP CI542-DP
Communication Interface
Protocol PROFIBUS DP (DP-V0 and DP-V1 slave)
ID configuration Per rotary switches on front face from 00h to FFh
Field bus connection on terminal units Sub-D 9 poles on TU509, TU510 preferred but TU517/TU518 can be used with baud rate up to
1Mbaud
Number of Channels per Module
Digital inputs 8 8
outputs 8 8
Analog inputs 4 –
outputs 2 –
Digital configurable channels DC – 8
(configurable as inputs or outputs) 04
Additional configuration of channels as
Fast counter (onboard I/O) Configuration of max. 2 DI channels per module
Occupies max 1 DO or DC when used as counter 
Connection
Local I/O extension 
Max. number of extension modules max. 10 x S500 extension modules (standard or eCo modules allowed). Fast counter from digital
I/O modules can be also used.
Via terminal unit TU5xx 
Digital inputs
Input signal voltage 24 V DC
characteristic acc. to EN 61132-2 Type 1
0 signal -3...+5 V DC
Undefined signal state 5...15 V DC
1 signal 15...30 V DC
Residual ripple, range for 0 signal -3...+5 V DC
1 signal 15...30 V DC
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms
Digital outputs
Transistor outputs 24 V DC, 0.5 A 
Readback of output –  (on DC outputs)
Outputs, supplied via process voltage UP 
Switching of 24 V load 
Output voltage at signal state 1 Process voltage UP - 0.8 V
Output current
Nominal current per channel 0.5 A
Maximum (total current of all channels) 8 A
Residual current at signal state 0 < 0.5 mA
Demagnetization when switching off inductive By internal varistors
loads
Analog Inputs AI Max. number per module and with regard to the configuration: AIs / Measuring points
Signal configuration per AI 4 –
0…10 V / -10…+10 V 4 / 4 –
0…20 mA / 4…20 mA 4 / 4 –
RTD using 2/3 wire needs 1/2 channel(s) 4 / 2 –
0…10 V using differential inputs, 4 / 2 –
needs 2 channels
-10…+10 V using differential inputs, 4 / 2 –
needs 2 channels
Digital signals (digital input) 4 / 4 –
Data when using the AI as digital input
Input Input time delay 8 ms typically, configurable from 0.1 up to 32 ms –
signal voltage 24 V DC –
