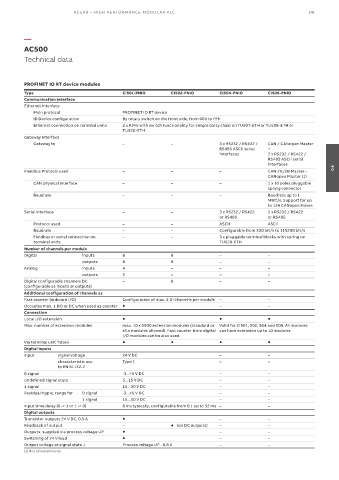

Technical data

PROFINET IO RT device modules
Type CI501-PNIO CI502-PNIO CI504-PNIO CI506-PNIO
Communication interface
Ethernet Interface
Main protocol PROFINET IO RT device
ID Device configuration By rotary switch on the front side, from 00h to FFh
Ethernet connection on terminal units 2 x RJ45 with switch functionality for simple daisy chain on TU507-ETH or TU508-ETH or
TU520-ETH
Gateway Interface
Gateway to – – 3 x RS232 / RS422 / CAN / CANopen Master
RS485 ASCII serial +
interfaces 2 x RS232 / RS422 /
RS485 ASCII serial
interfaces
Fieldbus Protocol used – – – CAN 2A/2B Master - 04
CANopen Master (1)
CAN physical interface – – – 1 x 10 poles pluggable
spring connector
Baudrate – – – Baudrate up to 1
MBit/s, Support for up
to 126 CANopen Slaves
Serial interface – – 3 x RS232 / RS422 2 x RS232 / RS422
or RS485 or RS485
Protocol used – – ASCII ASCII
Baudrate – – Configurable from 300 bit/s to 115200 bit/s
Fieldbus or serial connection on – – 3 x pluggable terminal blocks with spring on
terminal units TU520-ETH
Number of channels per module
Digital inputs 8 8 – –
outputs 8 8 – –
Analog inputs 4 – – –
outputs 2 – – –
Digital configurable channels DC – 8 – –
(configurable as inputs or outputs)
Additional configuration of channels as
Fast counter (onboard I/O) Configuration of max. 2 DI channels per module – –
Occupies max. 1 DO or DC when used as counter  – –
Connection
Local I/O extension   
Max. number of extension modules max. 10 x S500 extension modules (standard or Valid for CI501, 502, 504 and 506. All modules
eCo modules allowed). Fast counter from digital can have extension up to 10 modules
I/O modules can be also used.
Via terminal unit TU5xx    
Digital inputs
Input signal voltage 24 V DC – –
characteristic acc. Type 1 – –
to EN 61132-2
0 signal -3...+5 V DC – –
Undefined signal state 5...15 V DC – –
1 signal 15...30 V DC – –
Residual ripple, range for 0 signal -3...+5 V DC – –
1 signal 15...30 V DC – –
Input time delay (0 -> 1 or 1 -> 0) 8 ms typically, configurable from 0.1 up to 32 ms – –
Digital outputs
Transistor outputs 24 V DC, 0.5 A  – –
Readback of output –  (on DC outputs) – –
Outputs, supplied via process voltage UP  – –
Switching of 24 V load  – –
Output voltage at signal state 1 Process voltage UP - 0.8 V – –
(1) Not simultaneously.
