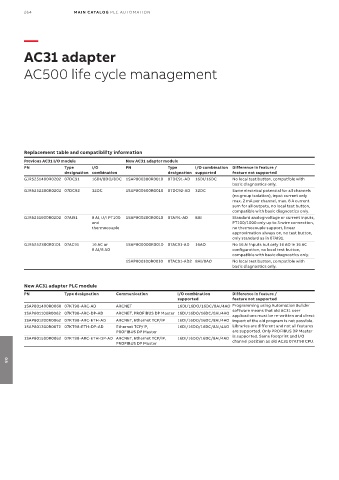

264 MAIN CATALOG PLC AUTOMATION

—

AC31 adapter

AC500 life cycle management

Replacement table and compatibility information
Previous AC31 I/O module New AC31 adapter module
PN Type I/O PN Type I/O combination Difference in feature /
designation combination designation supported feature not supported
GJR5251400R0202 07DC91 16DI/8DO/8DC 1SAP800300R0010 07DC91-AD 16DI/16DC No local test button, compatible with
basic diagnostics only.
GJR5252200R0202 07DC92 32DC 1SAP800500R0010 07DC92-AD 32DC Same electrical potential for all channels
(no group isolation), input current only
max. 2 mA per channel, max. 8 A current
sum for all outputs, no local test button,
compatible with basic diagnostics only.
GJR5251600R0202 07AI91 8 AI, U/I PT100 1SAP800200R0010 07AI91-AD 8AI Standard analog voltage or current inputs,
and PT100/1000 only up to 3-wire connection,
thermocouple no thermocouple support, linear
approximation always on, no test button,
only standard as in 07AI91.
GJR5252300R0101 07AC91 16 AC or 1SAP800000R0010 07AC91-AD 16AO No 16 AI inputs but only 16 AO in 16 AC
8 AI/8 AO configuration, no local test button,
compatible with basic diagnostics only.
1SAP800100R0010 07AC91-AD2 8AI/8AO No local test button, compatible with
basic diagnostics only.

New AC31 adapter PLC module
PN Type designation Communication I/O combination Difference in feature /
supported feature not supported
1SAP801400R0060 07KT98-ARC-AD ARCNET 16DI/16DO/16DC/8AI/4AO Programming using Automation Builder
software means that old AC31 user
1SAP801100R0062 07KT98-ARC-DP-AD ARCNET, PROFIBUS DP Master 16DI/16DO/16DC/8AI/4AO
applications must be re-written and direct
1SAP801200R0062 07KT98-ARC-ETH-AD ARCNET, Ethernet TCP/IP 16DI/16DO/16DC/8AI/4AO import of the old program is not possible.
1SAP801300R0072 07KT98-ETH-DP-AD Ethernet TCP/IP, 16DI/16DO/16DC/8AI/4AO Libraries are different and not all features
PROFIBUS DP Master are supported. Only PROFIBUS DP Master
is supported. Same footprint and I/O
1SAP801500R0062 07KT98-ARC-ETH-DP-AD ARCNET, Ethernet TCP/IP, 16DI/16DO/16DC/8AI/4AO
PROFIBUS DP Master channel position as old AC31 07KT98 CPU.
