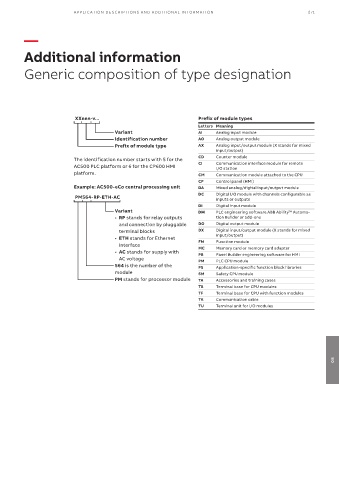

APPLIC ATION DESCRIPTIONS AND ADDITIONAL INFORMATION 271

—

Additional information

Generic composition of type designation

XXnnn-v... Prefix of module types
Letters Meaning
Variant AI Analog input module
Identification number AO Analog output module
Prefix of module type AX Analog input/output module (X stands for mixed
input/output)
The identification number starts with 5 for the CD Counter module
AC500 PLC platform or 6 for the CP600 HMI CI Communication interface module for remote
I/O station
platform. CM Communication module attached to the CPU
CP Control panel (HMI)
Example: AC500-eCo central processing unit DA Mixed analog/digital input/output module
DC Digital I/O module with channels configurable as
PM564-RP-ETH-AC inputs or outputs
DI Digital input module
Variant DM PLC engineering software ABB Ability Automa-
TM
• RP stands for relay outputs tion Builder or add-ons
and connection by pluggable DO Digital output module
terminal blocks DX Digital input/output module (X stands for mixed
• ETH stands for Ethernet input/output)
interface FM Function module

• AC stands for supply with MC Memory card or memory card adapter
Panel Builder engineering software for HMI
PB
AC voltage PM PLC CPU module
564 is the number of the PS Application-specific function block libraries
module SM Safety CPU module
PM stands for processor module TA Accessories and training cases
TB Terminal base for CPU modules
TF Terminal base for CPU with function modules
TK Communication cable
TU Terminal unit for I/O modules
