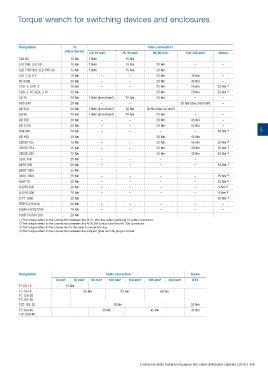

Torque wrench for switching devices and enclosures

Designation To Cable connection
phase busbar
2,5-16 mm² 25-35 mm² 50-95 mm² 120-300 mm² Others
SLD 63 15 Nm 15Nm 15 Nm – – –
SLD 000, SLD 00 15 Nm 15Nm 15 Nm 20 Nm – –
SLD-FHD 000, SLD-FHD 00 15 Nm 15Nm 15 Nm 20 Nm – –
SLD 1, SLD 2 15 Nm – – 20 Nm 35 Nm –
FD 3300 20 Nm – – 20 Nm 45 Nm –
SLDL 2, SLDL 3 15 Nm – – 25 Nm 25 Nm 35 Nm 1)
SLDL 2-1P, SLDL 3-1P 15 Nm – – 25 Nm 25 Nm 35 Nm 1)
AD 70 20 Nm 10Nm (from 6mm²) 20 Nm 20 Nm – –
ADO 240 20 Nm – – - 35 Nm (max 240 mm²) –
AD 350 20 Nm 10Nm (from 6mm²) 20 Nm 20 Nm (max 50 mm²) – –
AD 95 20 Nm 10Nm (from 6mm²) 20 Nm 20 Nm – –
AD 300 20 Nm – – 20 Nm 45 Nm –
AD 2150 20 Nm – – 20 Nm 45 Nm –
ADB 3M 20 Nm – – – – 20 Nm 5
2)
AD 400 20 Nm – – 20 Nm 45 Nm –
SEKOD 125 15 Nm – – 20 Nm 45 Nm 20 Nm 3)
SEKOD 224 15 Nm – – 20 Nm 45 Nm 20 Nm 3)
SEKOD 355 15 Nm – – 20 Nm 45 Nm 20 Nm 3)
SLOC 630 25 Nm – – – – -
LBOD 800 25 Nm – – – – 35 Nm 3)
LBOD 1000 25 Nm – – – – –
LBOD 1600 25 Nm – – – – 25 Nm 3)
KLAP T5 20 Nm – – – – 20 Nm 4)
A-S/T6 630 20 Nm – – – – 9 Nm 3)
A-S/T6 800 20 Nm – – – – 9 Nm 3)
A-T7 1000 25 Nm – – – – 35 Nm 3)
TRAFO-C/S 630 20 Nm – – – – –
KSSM-S 630/1200 20 Nm – – – – –
KLKB-S 630/1200 20 Nm – – – – –
1) The torque refers to the connection between the SLDL and the cable (cable lug or cable connector).
2) The torque refers to the connection between the ADB 3M contact and the AD 300 connector.
3) The torque refers to the connection to the switch connection lug.
4) The torque refers to the connection between the adapter plate and the plug-in socket.

Designation Cable connection Screw
6 mm² 50 mm² 95 mm² 120 mm² 150 mm² 185 mm² 300 mm² M10
TC 50-12 12 Nm
TC 70-15 20 Nm 25 Nm 45 Nm
TC 120-20
TC 300-25
TCD 185-25 20 Nm 35 Nm
TC 300-40 35 Nm 45 Nm 35 Nm
TCD 300-40
