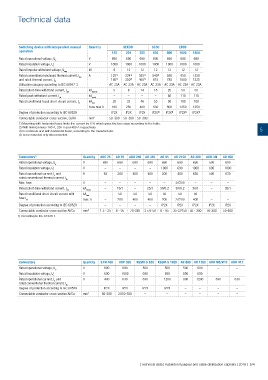

Technical data

Switching device with independent manual Quantity SEKOD SLOC LBOD
operation 125 224 355 630 800 1000 1600
Rated operational voltage, U V 690 690 690 690 690 690 690
e
Rated insulation voltage, U i V 1000 1000 1000 1000 1000 1000 1000
Rated impulse withstand voltage, U kV 8 12 12 12 12 12 12
imp
1)
1)
Rated conventional enclosed thermal current, I A 125 1) 224 355 540 3) 680 950 1250
the
and rated thermal current, I th 160 2) 250 2) 400 2) 615 785 1000 1325
Utilization category according to IEC 60947-3 AC-23A AC-23A AC-23A AC-23A AC-23A AC-23A AC-23A
Rated short-time withstand current, I kA 5 8 14 18 20 50 50
cw rms/1s
Rated peak withstand current, I pk kA peak – – – – 80 110 110
Rated conditional fused short-circuit current, I cf kA rms 20 32 46 55 90 100 100
Fuse max A 160 250 400 630 800 1250 1250
Degree of protection according to IEC 60529 IP2X IP2X IP2X IP2X 4) IP2X 4) IP2X 4) IP2X 4)
Connectable conductor cross-section, Cu/Al mm 2 50–300 50–300 50–300 – – – –
1) Mounting with horizontal fuses limits the current by 8 % which gives the fuse sizes according to the table.
2) With linking knives 160 A, 250 A and 400 A respectively.
3) In enclosure and with horizontal fuses, according to the manufacturer. 5
4) To be mounted only disconnected.

Connectors 1) Quantity ADC 25 AD 70 ADO 240 AD 350 AD 95 AD 2150 AD 300 ADB 3M AD 400
Rated operational voltage, U V 690 690 690 690 690 690 690 500 690
e
Rated insulation voltage, U i V – – – – 1000 690 1000 690 1000
Rated operational current, I and A 63 200 400 400 200 400 630 500 630
e
rated conventional thermal current, I
th
Max. fuse A – – – – – 2//200 – – –
Rated short-time withstand current, I cw kA rms/s – 19/1 – 25/1 30/0.2 30/0.2 30/1 – 35/1
Rated conditional short-circuit current with kA – 50 50 50 50 50 50 – –
rms
fuse I cf max. A – 200 400 400 200 2//200 400 – –
Degree of protection according to IEC 60529 – – – – IP2X IP2X IP2X IP2X IP2X
Connectable conductor cross-section Al/Cu mm 2 1.5 - 25 6 - 95 70-240 3 x 6-50 6 - 95 35-2//150 50 - 300 50-300 50-400
1) According to IEC 61238-1.

Connectors Quantity STM 400 ADP 300 KSSM-S 630 KSSM-S 1200 AB 800 AB 1200 ADR M8/M12 ADR H12
Rated operational voltage, U V 690 690 500 500 500 500 – –
e
Rated insulation voltage, U i V 690 1000 690 690 690 690 – –
Rated operational current, I and A 400 630 630 1200 800 1200 630 630
e
rated conventional thermal current, I
th
Degree of protection according to IEC 60529 IP2X IP2X IP2X IP2X – – – –
Connectable conductor cross-section Al/Cu mm 2 50-300 2//50-300 – – – – – –

| Technical data | Kabeldon fusegear and cable distribution cabinets | 2016 | 5/4
