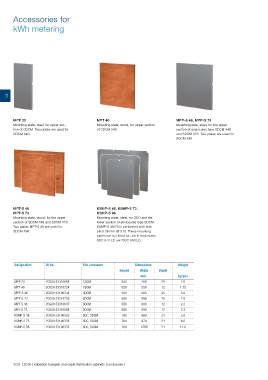

Page 80 - Kabeldon

Accessories for

kWh metering

3

MPP 20 MPT 40 MPP-S 48, MPP-S 73
Mounting plate, steel, for upper sec- Mounting plate, wood, for upper section Mounting plate, steel, for the upper
tion of CDCM. Two plates are used for of CDCM X40. section of enclosures type SDCM X48
CDCM X40. and SDCM X73. Two plates are used for
SDCM X98.

MPT-S 48 KSMP-S 48, KSMP-S 73,
MPT-S 73 KSMP-S 98
Mounting plate, wood, for the upper Mounting plate, steel, for SDC and the
section of SDCM X48 and SDCM X73. lower section of enclosures type SDCM.
Two plates MPT-S 48 are used for KSMP-S 48/73 is perforated with hole
SDCM X98. pitch 38 mm (Ø 3.5). These mounting
plates are not fitted for use in enclosures
SDC 673 LD and SDC 698 LD.

Designation ID No. Fits enclosure Dimensions Weight
Height Width Depth
mm kg/pcs
MPP 20 2CGX0 53310665 CDCM 540 268 25 2.0
MPT 40 2CGX0 53310724 CDCM 550 550 12 1.75
MPP-S 48 2CGX0 53190334 SDCM 580 585 25 3.0
MPP-S 73 2CGX0 53310735 SDCM 580 856 25 7.0
MPT-S 48 2CGX0 53310647 SDCM 580 600 12 2.2
MPT-S 73 2CGX0 53310688 SDCM 580 890 12 3.3
KSMP-S 48 2CGX0 53190332 SDC, SDCM 780 660 21 5.0
KSMP-S 73 2CGX0 53190335 SDC, SDCM 780 974 21 8.0
KSMP-S 98 2CGX0 53190333 SDC, SDCM 780 1268 21 11.0

3/29 | 2016 | Kabeldon fusegear and cable distribution cabinets | Enclosures |
