PLC AUTOMATION PRODUCT FAMILY 25
01
—

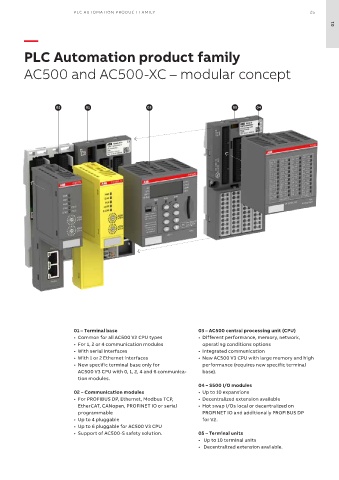

PLC Automation product family
AC500 and AC500-XC – modular concept
02 01 03 05 04
01 – Terminal base 03 – AC500 central processing unit (CPU)
• Common for all AC500 V2 CPU types • Different performance, memory, network,
• For 1, 2 or 4 communication modules operating conditions options
• With serial interfaces • Integrated communication
• With 1 or 2 Ethernet interfaces • New AC500 V3 CPU with large memory and high
• New specific terminal base only for performance (requires new specific terminal
AC500 V3 CPU with 0, 1, 2, 4 and 6 communica- base).
tion modules.
04 – S500 I/O modules
02 – Communication modules • Up to 10 expansions
• For PROFIBUS DP, Ethernet, Modbus TCP, • Decentralized extension available
EtherCAT, CANopen, PROFINET IO or serial • Hot swap I/Os local or decentralized on
programmable PROFINET IO and additionally PROFIBUS DP
• Up to 4 pluggable for V2.
• Up to 6 pluggable for AC500 V3 CPU
• Support of AC500-S safety solution. 05 – Terminal units
• Up to 10 terminal units
• Decentralized extension available.
