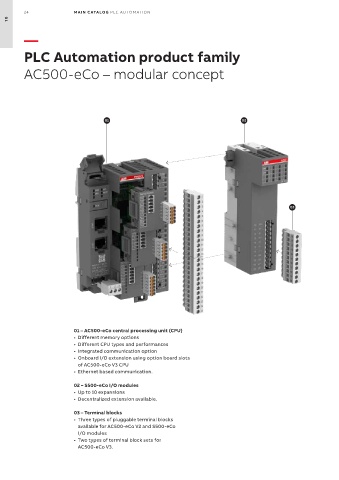

PLC Automation product family

AC500-eCo – modular concept

01 02

03

01 – AC500-eCo central processing unit (CPU)
• Different memory options
• Different CPU types and performances
• Integrated communication option
• Onboard I/O extension using option board slots
of AC500-eCo V3 CPU
• Ethernet based communication.

02 – S500-eCo I/O modules
• Up to 10 expansions
• Decentralized extension available.

03 – Terminal blocks
• Three types of pluggable terminal blocks
available for AC500-eCo V2 and S500-eCo
I/O modules
• Two types of terminal block sets for
AC500-eCo V3.
