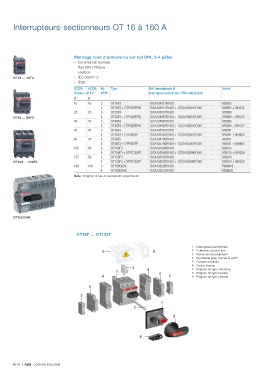

Interrupteurs-sectionneurs OT 16 à 160 A

Montage fond d'armoire ou sur rail DIN, 3-4 pôles
– Commande frontale
– Rail DIN / Platine
– Fixation
OT16 ... 40F3 – IEC 60947-3
– IP20
AC22A AC23A Nb Type Réf. internationale @ Article
Tension ≤ 415 V pôles Interrupteur-sectionneur / Pôle additionnel
A A
16 16 3 OT16F3 1SCA104811R1001 938955
4 OT16F3 + OTPS40FPN1 1SCA104811R1001 + 1SCA105001R1001 938955 + 939132
25 20 3 OT25F3 1SCA104857R1001 939000
OT63 ... 80F3 4 OT25F3 + OTPS40FPN1 1SCA104857R1001 + 1SCA105001R1001 939000 + 939132
40 23 3 OT40F3 1SCA104902R1001 939045
4 OT40F3 + OTPS40FPN1 1SCA104902R1001 + 1SCA105001R1001 939045 + 939132
63 45 3 OT63F3 1SCA105332R1001 939291
4 OT63F3 + OTPS80FP 1SCA105332R1001 + 1SCA105461R1001 939291 + 939402
80 75 3 OT80F3 1SCA105798R1001 939701
4 OT80F3 + OTPS80FP 1SCA105798R1001 + 1SCA105461R1001 939701 + 939402
100 80 3 OT100F3 1SCA105004R1001 939135
4 OT100F3 + OTPS125FP 1SCA105004R1001 + 1SCA105099R1001 939135 + 939226
125 90 3 OT125F3 1SCA105033R1001 939163
OT100 ... 125F3 4 OT125F3 + OTPS125FP 1SCA105033R1001 + 1SCA105099R1001 939163 + 939226
160 160 3 OT160G03K 1SCA138208R1001 F966618
4 OT160G04K 1SCA138215R1001 F966625
Note : Poignée et axe à commander séparément.

OT160G04K

OT16F ... OT125F

1 - Interrupteur-sectionneur
6 6 2 - Extension d'axe 6 mm 5 5
3 - Borne de raccordement
4 - Quatrième pôle, bornes N et PE
5 - Contact auxiliaire
6 - Cache-bornes 2
3 1 3
1 4 7 - Poignée de type sélecteur
8 - Poignée de type bouton
4 5 5 9 - Poignée de type pistolet 3 4
5
I ON
5 4
7
2
I ON 7
9 7 I O N
O OFF
F F I ON
O

O 8
O OFF 6 O OFF
NO II
8 NO II
O OFF
